Produktbeskrivning

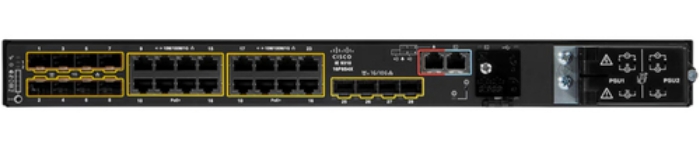

Cisco Catalyst IE9300 Rugged Series switches with 28 ports of Gigabit and 10 Gigabit Ethernet interfaces deliver high-speed Ethernet connectivity in a compact form factor and are designed for a wide range of industrial applications for which hardened products are required. The platform is built to withstand harsh environments in manufacturing, energy, transportation, mining, smart cities, and oil and gas. The switches are ideal for outdoor enclosures or harsh environments while adhering to overall IT network design, compliance, and performance requirements.
These switches run Cisco IOS® XE, an operating system with built-in security and trust, featuring Secure Boot, image signing, and the Cisco® Trust Anchor module. Cisco IOS XE also provides API-driven configuration with open APIs and data models.
The Cisco Catalyst IE9300 Rugged Series can be managed with a powerful management tool, Cisco Catalyst Center, and can easily be set up with a completely redesigned user-friendly modern GUI tool called WebUI. The platform supports Full Flexible NetFlow (FNF) for real-time visibility into traffic patterns and threat analysis with Cisco Secure Network Analytics. With Cisco Cyber Vision included, the IE9300 identifies connected assets, their profiles, vulnerabilities, and communication patterns to assess your OT security posture and help drive cybersecurity best practices. With Cisco Secure Equipment Access included, it enables zero-trust remote access to connected assets to help you control risks from remote users.
The Cisco IE9300 Rugged Series, by building a high-performance, reliable, and secure industrial network, provides the foundational infrastructure that transports and protects the massive amounts of data required for software-defined automation and Industrial AI applications to function effectively and deliver actionable insights for operations.
Viktiga egenskaper
Cisco Catalyst IE9300. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16, Console port: RS-232. Full duplex. MAC address table: 24000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1ab, IEEE 802.1s,.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2/L3 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Web-based management | Yes |
|---|
| ARP inspection | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 16 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Installed SFP modules quantity | 0 |
|---|
| Installed SFP+ modules quantity | 0 |
|---|
| SFP module slots quantity | 8 |
|---|
| SFP+ module slots quantity | 4 |
|---|
| Fiber ports quantity | 12 |
|---|
| Fiber optic connector | SFP,SFP+ |
|---|
| Console port | RS-232 |
|---|
| Power connector | AC-in jack |
|---|
Network
| Networking standards | IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt,IEEE 802.1Q,IEEE 802.1w,IEEE 802.1ab,IEEE 802.1s,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1x,IEEE 802.1AE,IEEE 802.1p,IEEE 802.1D,IEEE 802.3ah,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z |
|---|
| 10G support | Yes |
|---|
| IP routing | Yes |
|---|
| Policy-based routing | Yes |
|---|
| Full duplex | Yes |
|---|
| IPv4 routes | 7000 |
|---|
| IPv6 routes | 3500 |
|---|
| Spanning tree protocol | Yes |
|---|
| Link aggregation | Yes |
|---|
| VLAN support | Yes |
|---|
| Virtual LAN features | VLAN mapping |
|---|
| Number of VLANs | 4096 |
|---|
Data transmission
| MAC address table | 24000 entries |
|---|
| Switching capacity | 128 Gbit/s |
|---|
| Forwarding rate | 95.23 Mpps |
|---|
| Number of queues | 8 |
|---|
| Static route | Yes |
|---|
Security
| DHCP features | DHCP server,DHCP snooping |
|---|
| Access Control List (ACL) | Yes |
|---|
| Access Control List (ACL) rules | 1536 |
|---|
| IGMP entries | 1000 |
|---|
| IGMP snooping | Yes |
|---|
| Security algorithms | SSH,TLS |
|---|
| SSH/SSL support | Yes |
|---|
| Loop protection | Yes |
|---|
| Authentication type | RADIUS,TACACS+,AAA,IEEE 802.1x |
|---|
| Queue scheduling algorithms | Priority queuing (PQ) |
|---|
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | Yes |
|---|
| Stackable | No |
|---|
| Form factor | 1U |
|---|
| Product colour | Black |
|---|
Performance
| Memory type | DRAM |
|---|
| Internal memory | 8192 MB |
|---|
| Flash memory | 8192 MB |
|---|
| Fanless | Yes |
|---|
| Mean time between failures (MTBF) | 265827 h |
|---|
Power
| Power source | AC/DC |
|---|
| Redundant power supply (RPS) support | Yes |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
| Power over Ethernet (PoE) type supported | PoE+ |
|---|
| Power over Ethernet plus (PoE+) ports quantity | 16 |
|---|
Operational conditions
| Operating temperature (T-T) | -40 - 75 °C |
|---|
| Storage temperature (T-T) | -40 - 85 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
Weight & dimensions
| Weight | 4810 g |
|---|
