Produktbeskrivning

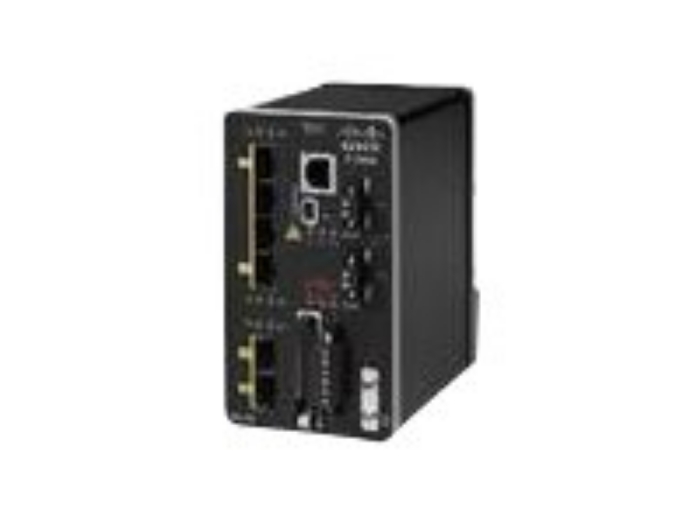

The Cisco Industrial Ethernet 2000 (IE 2000) series is a range of compact, industrially ruggedized access switches. IE 2000 series provides customers with ease of use, secure access, and industry leading convergence using Cisco Resilient Ethernet Protocol (REP). Multiple industries such as automotive, oil and gas, mining, transportation, and energy companies are all increasingly requiring IP based networks in their production areas. The IE 2000 additions have been designed to support access layer connectivity and to meet the increasing needs for security, voice, and video traffic across industrial networks.



Egenskaper

Easy deployment
Zero-touch discovery using DHCP, express setup, fast bootup time to help migrating to Ethernet environment without resistance.

Security
Dot1x, port security, and DHCP allow dynamic port-base authentication, Secure Shell (SSHv2), SNMPv3 provides encrypted administrator traffic during Telnet and SNMP sessions, TACACS+ and RADIUS authentication facilitate centralized control and restrict unauthorized users.

Resiliency
Flex links for fast recovery, Cisco REP protocol for fast convergence.

Industrial automation protocols
Support for Common Industrial Protocol (CIP) and PROFINETv2 that allow integration with existing management platform from Rockwell, Siemens, and other industrial environments.



Teknisk specifikation

Typ av enhet	Switch - 6 portar - Administrerad
Modell	DIN-skenmonterbar
Undertyp	Fast Ethernet
Portar	4 x SFP + 2 x Gigabit SFP
Prestanda	Vidarebefordransprestanda (64 bytes paketstorlek): 6.5 Mpps
Kapacitet	Virtuella gränssnitt (VLAN): 255 IGMP-grupper: 255
MAC Address Table Size	8K poster
Nätverksprotokoll	IGMPv2, IGMP, IGMPv3, statisk IPv4-routing
Protokoll för administration på distans	SNMP 1, SNMP 2, RMON 2, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, SSH
Krypteringsalgoritm	SSL
Verifieringsmetod	RADIUS, TACACS+
Funktioner	NAT-stöd, BOOTP-stöd, ARP-stöd, Syslog-stöd, Broadcast Storm Control, stöd för IPv6, fullt duplexläge, Multicast Storm Control, Unicast Storm Control, stöd för STP (Spanning Tree Protocol), stöd för snabbt trädspanningsprotokoll (RSTP), DHCP-snooping, Quality of Service (QoS), stöd för digital optisk övervakning (DOM), Dynamic ARP Inspection (DAI), Uni-Directional Link Detection (UDLD), LLDP-support, LACP (Link Aggregation Control Protocol), Port Security, Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), 2 MB paketbuffert, 802.1x-autentisering, FTP-klient, stöd för SNMP, Precision Time Protocol (PTP)
Standarder som följs	IEEE 802.3, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.11p
RAM	256 MB
Flash-minne	64 MB

Gränssnitt	4 x 100Base-BX SFP 2 x SFP 1 x mini-USB 1 x konsol RJ-45
Expansionskortplatser	1 (totalt)/ 1 (ledig) x SD-minneskort

MTBF (genomsnittstid mellan fel)

374,052 timmar

Standarder som följs

CSA, UL, BSMI, CISPR 22 klass A, CISPR 24, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN55024, EN55022 klass A, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, ICES-003 klass A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-4, IEC 60068-2-30, KCC, IEC 60068-2-27, IEC 60068-2-6, UL 508, ANATEL, IEC 60945, CSA C22.2 No. 60950-1, CISPR 11, CSA 22.2 No. 142, EN 61131-2, EN 61326-1, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-16, EN 61000-4-29, EN50155, AS/NZS, EMI, IEC 60068-2-60, EN 50121-4, IP30, NOM-019-SCFI-1998, Directive 2011/65/EU, VCCI Class A, KN24, CNS 13438(95) Class A, IEC 61373, IEC 61000-4-9, KN22 Class A, China RoHS, EN 50121-3-2, RoHS 2011/65/EU

Medföljande programvara	Cisco IOS LAN Base

Bredd	13 cm
Djup	8 cm
Höjd	11.5 cm
Vikt	1.22 kg

Service och support	Begränsad garanti - 5 år

Luftfuktighet vid drift	5 - 95 % (icke-kondenserande)
Min temperatur vid förvaring	-40 °C
Max temperatur vid förvaring	85 °C
