Produktbeskrivning

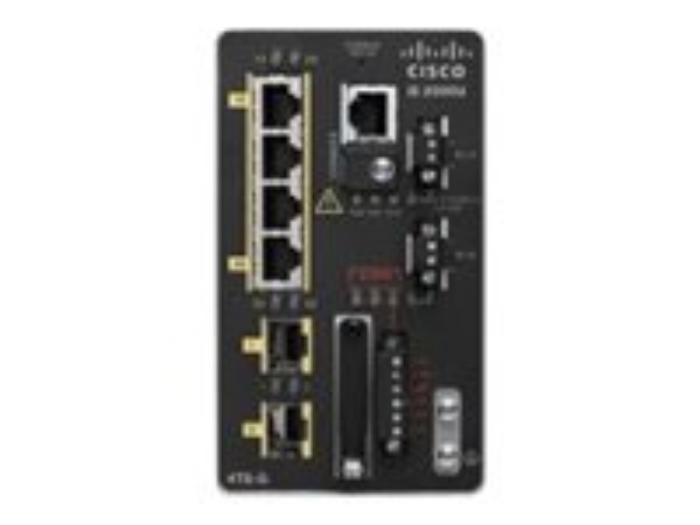

The Cisco 2000U Industrial Ethernet Switches (IE 2000U) are a range of compact switches designed for the harsh, rugged environments often found in the energy and utility industries. IE 2000U switches are designed to support the communications infrastructure needs for the energy delivery infrastructure across distributed generation, transmission, and distribution sectors. This infrastructure includes utility and customer-owned energy infrastructure, such as substation applications supporting electrical transmission and distribution, renewable generation, oil and gas, water, distributed generation, cogeneration, and trackside operations. The infrastructure also includes communications infrastructure for delivery applications such as transmission pipelines, distribution mains, and service lines for oil and gas and water.



Egenskaper

High availability and redundancy
Hardware ready to support IEC 62439-3 protocols for transparent redundancy: Parallel Redundancy Protocol/High-Availability Seamless Redundancy (PRP/HSR), field-replaceable components such as power supplies and SFPs reduce redeployment time. Intuitive graphical user interface (GUI) in Cisco Configuration Professional simplifies configuration of switches and reduces training time and costs. Utility-focused enhancements have been added to further increase ease of use.

Energy efficiency
The IE 2000U architecture provides energy-saving features that include the high-efficiency power supplies with dual connections for redundancy and high availability, no fans are used, which reduces overall power consumption.



Teknisk specifikation

Typ av enhet	Switch - 6 portar - Administrerad
Modell	DIN-skenmonterbar
Undertyp	Fast Ethernet
Portar	4 x 10/100 + 2 x Gigabit SFP
Prestanda	Vidarebefordransprestanda (64 bytes paketstorlek): 6.5 Mpps
Kapacitet	Virtuella gränssnitt (VLAN): 255 IGMP-grupper: 255
Protokoll för administration på distans	SNMP 1, SNMP 2, SNMP 3, HTTPS, SSH, CLI
Verifieringsmetod	Secure Shell (SSH), RADIUS, TACACS+
Funktioner	DHCP-stöd, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, stöd för STP (Spanning Tree Protocol), stöd för snabbt trädspanningsprotokoll (RSTP), stöd för ACL (Access Control List), Quality of Service (QoS), MLD-snooping, Port Security, Remote Switch Port Analyzer (RSPAN)
Standarder som följs	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag
RAM	256 MB
Flash-minne	64 MB

Gränssnitt	4 x 100Base-TX RJ-45 2 x 1000Base-X SFP upplänk 1 x konsol 1 x USB
Expansionskortplatser	1 (totalt)/ 1 (ledig) x SD-minneskort

Standarder som följs	EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, UL 508, CSA C22.2 No. 60950-1

Medföljande programvara	Cisco IOS LAN Base

Bredd	7.37 cm
Djup	11.46 cm
Höjd	12.7 cm
Vikt	1.11 kg

Service och support	Begränsad garanti - utbyte av delar i förväg - 5 år - svarstid: 10 dagar

Min temperatur vid drift	-40 °C
Max temperatur vid drift	70 °C
Luftfuktighet vid drift	5 - 95 % (icke-kondenserande)
Min temperatur vid förvaring	-50 °C
Max temperatur vid förvaring	85 °C
