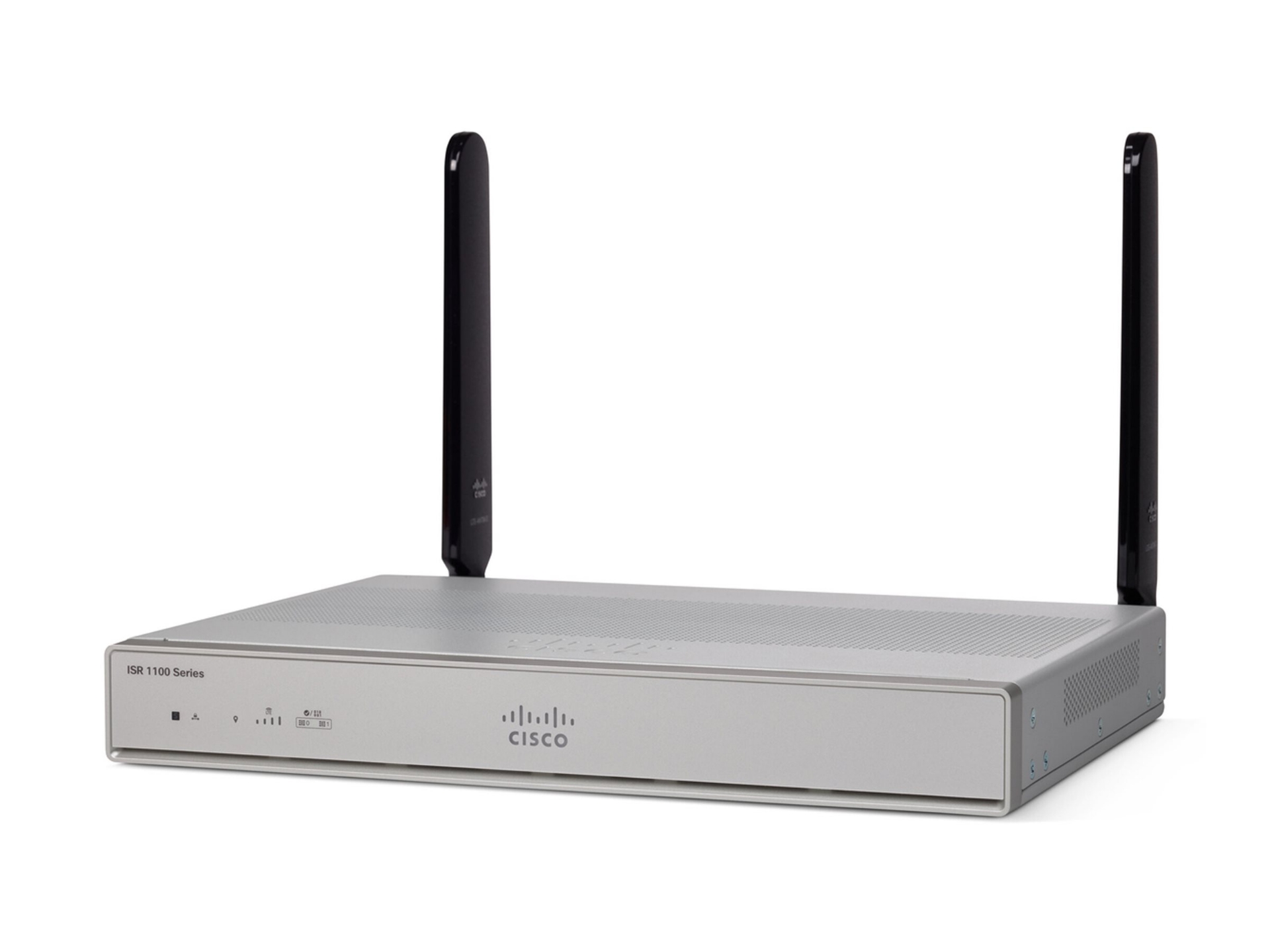

The Cisco 1116 ISR 4-port LTE (EMEAR and North America) with a small form factor is best suited for small and midsize businesses, enterprise branches, and as customer premises equipment in managed services environments; it can be used in ATMs, retail stores, and kiosks. The C1116-4PLTEEA model comes with four LAN ports and supports Power over Ethernet (PoE) and PoE+ to power branch devices such as IP phones and cameras. It has high performance with Gigabit Ethernet packet forwarding capabilities and the multicore architecture has separate cores for the data plane and control plane so your network ensures an optimized user experience. You can easily deploy this router with zero-touch provisioning using the plug-and-play capability. This model is configured for EMEAR and North America.
It can be deployed in many different environments where space, heat dissipation, and low power consumption are critical factors.
High performance allows customers to take advantage of broadband network speeds while running secure, concurrent data, voice, video, and wireless services.
The router can run multiple services simultaneously with minimal performance degradation.
Allmänt
| Typ av enhet | Router - 4-ports-switch (inbyggd) |
|---|
| Modell | Skrivbordsmodell |
|---|
| Anslutningsteknik | Kabelansluten |
|---|
| Datalänkprotokoll | Ethernet, Fast Ethernet, Gigabit Ethernet |
|---|
| Prestanda | Krypteringsgenomströmning: 250 Mbps |
|---|
| Nätverks/transportprotokoll | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
|---|
| Nätverksprotokoll | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, statisk IP-routing, IGMPv3, GRE, PIM-SSM, PBR (policy-based routing), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
|---|
| Protokoll för administration på distans | SNMP, RMON, CLI, TR-069 |
|---|
| Krypteringsalgoritm | DES, Tredubbel DES, SHA, MD5, IKE, ECDSA, 128-bitars AES, 256 bitars AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bitars RSA, 384-bitars SHA |
|---|
| Verifieringsmetod | RADIUS |
|---|
| Funktioner | Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), stöd för ACL (Access Control List), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), 2T2R MIMO-teknik, NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyklisk växlingsmångfald (CSD), Location ID Separation Protocol (LISP), paketaggregering A-MPDU, paketaggregering A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM) |
|---|
| Standarder som följs | IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, IEEE 802.11ac Wave 2, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13 |
|---|
| RAM | 4 GB |
|---|
| Flash-minne | 4 GB |
|---|
| Statusindikatorer | Status |
|---|
