Produktbeskrivning

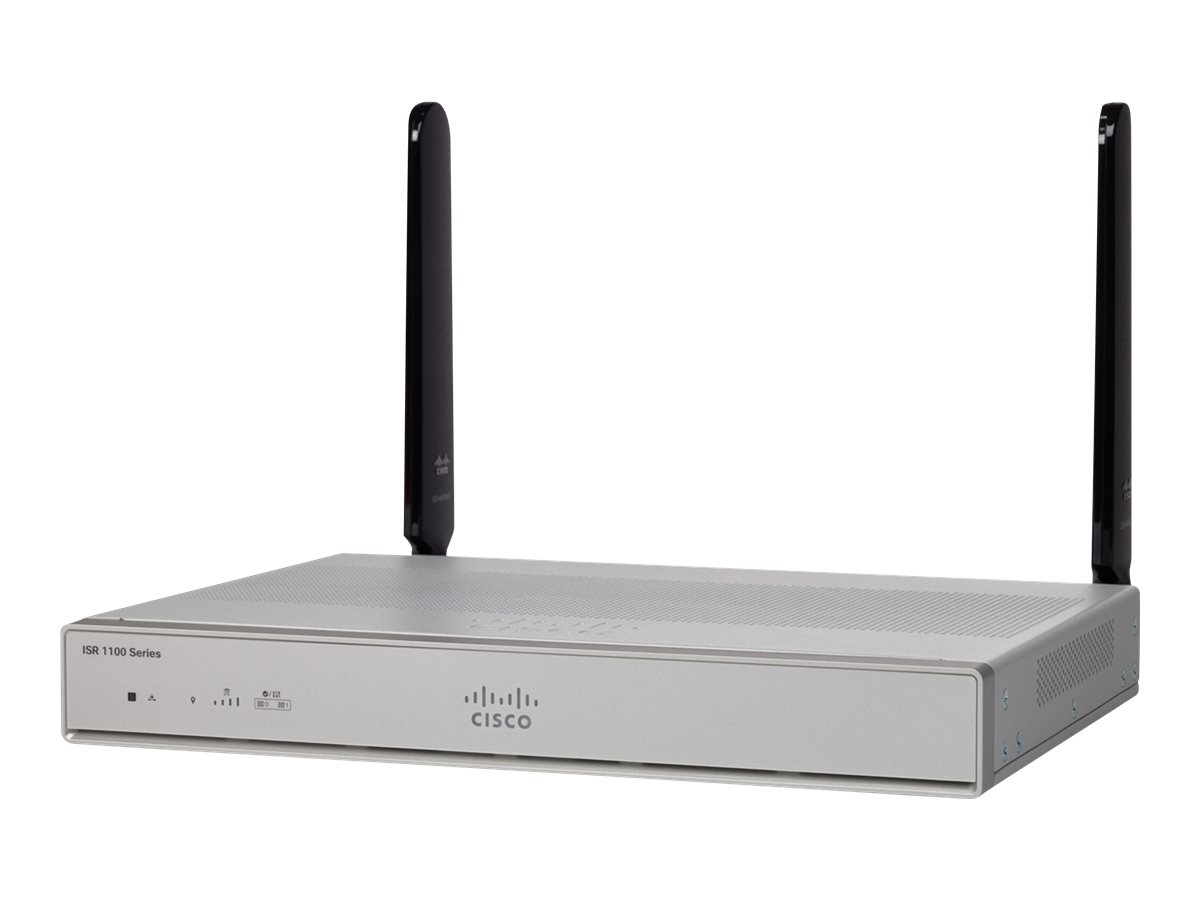

The Cisco C1116-4P Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors.



Egenskaper

PORT COUNT
4-port managed Gigabit Ethernet switch (2 ports PoE capable with 1 port PoE+)

CONNECTIVITY
VA-DSL (Annex B/J) Wan and WAN/SFP combo ports with integrated USB 3.0 AUX/console

SECURITY
Multi-layer, robust security and high-performance VPNs encrypt all data from the WAN edge to the cloud

PERFORMANCE
Business router designed for broadband network speeds while running secure, concurrent data, voice, video and wireless services

PEACE OF MIND
1-year limited hardware warranty with 10-day advanced replacement



Innehåll i förpackning

● C1116-4P Router, Power Supply and Power Cable, Product Documentation



Teknisk specifikation

Typ av enhet	Router - 4-ports-switch (inbyggd)
Modell	Skrivbordsmodell
Anslutningsteknik	Kabelansluten
Datalänkprotokoll	Ethernet, Fast Ethernet, Gigabit Ethernet
Prestanda	Krypteringsgenomströmning: 250 Mbps
Nätverks/transportprotokoll	IPSec, PPPoE, DHCP, DNS, L2TPv3
Nätverksprotokoll	OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, statisk IP-routing, IGMPv3, GRE, PIM-SSM, PBR (policy-based routing), MPLS, Bidirectional Forwarding Detection (BFD), RSVP
Protokoll för administration på distans	SNMP, RMON, CLI, TR-069
Krypteringsalgoritm	DES, Tredubbel DES, SHA, MD5, IKE, ECDSA, 128-bitars AES, 256 bitars AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bitars RSA, 384-bitars SHA
Verifieringsmetod	RADIUS
Funktioner	Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), stöd för Access Control List (ACL), Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), 2T2R MIMO-teknik, NetFlow, Maximum Ratio Combining (MRC), IPFIX, CSD (Cyclic Shift Diversity), Location ID Separation Protocol (LISP), paketaggregering A-MPDU, paketaggregering A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM)
Standarder som följs	IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13
RAM	4 GB
Flash-minne	4 GB
Statusindikatorer	Status

Typ	DSL-modem
Digitalt signaleringsprotokoll	ADSL2+, VDSL2+
Protokoll och specifikationer	ITU G.992.1 (G.DMT) Annex B, ITU G.993.2, ITU G.992.5 Annex B, ITU G.992.3 Annex B, ITU G.992.5 Annex J, ITU G.992.3 Annex J

Gränssnitt	WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP LAN: 2 x 1000Base-T - RJ-45 LAN: 1 x 1000Base-T (PoE+) - RJ-45 LAN: 1 x 1000Base-T (PoE) - RJ-45 USB 3.0: 1 x konsol WAN: 1 x VDSL2 / ADSL2+

Nätspänning	AC 120/230 V (50/60 Hz)

Bredd	32.3 cm
Djup	23 cm
Höjd	4.2 cm
Vikt	2.59 kg

Service och support	Begränsad garanti - utbyte av delar i förväg - 1 år - svarstid: 10 dagar

Min temperatur vid drift	0 °C
Max temperatur vid drift	65 °C
Luftfuktighet vid drift	5 - 95 % (icke-kondenserande)
