Produktbeskrivning
Intel® Data Direct I/O Technology is a platform technology that improves I/O data processing efficiency for data delivery and data consumption from I/O devices. With Intel DDIO, Intel® Server Adapters and controllers talk directly to the processor cache without a detour via system memory, reducing latency, increasing system I/O bandwidth, and reducing power consumption.
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.
Single-Root I/O Virtualization (SR-IOV) involves natively (directly) sharing a single I/O resource between multiple virtual machines. SR-IOV provides a mechanism by which a Single Root Function (for example a single Ethernet Port) can appear to be multiple separate physical devices.
Viktiga egenskaper

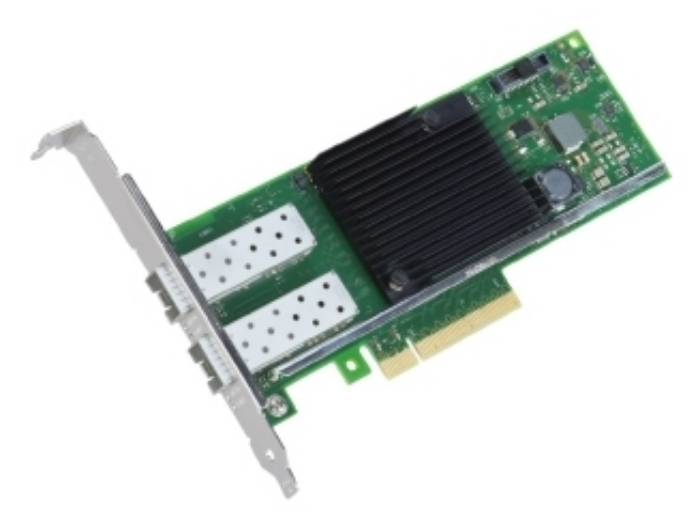

Cisco UCSC-PCIEID10GF-D=. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Fiber. Maximum data transfer rate: 40000 Mbit/s. Product colour: Green
Teknisk specifikation
Ports & interfaces
| Connectivity technology | Wired |
|---|
| Host interface | PCI Express |
|---|
| Interface | Fiber |
|---|
| Fiber ports quantity | 2 |
|---|
| PCI Card form factor | Half-height (low-profile) |
|---|
Network
| Maximum data transfer rate | 40000 Mbit/s |
|---|
| Networking standards | IEEE 802.1Q,IEEE 802.1as,IEEE 802.1p,IEEE 802.3,IEEE 802.3ad |
|---|
| Ethernet interface type | 10 Gigabit Ethernet |
|---|
| Ethernet LAN data rates | 10000 Mbit/s |
|---|
| Cabling technology | 10GBase-T |
|---|
| iSCSI support | Yes |
|---|
| VLAN tagging | Yes |
|---|
| LAN controller | Intel® X550 |
|---|
Design
| Internal | Yes |
|---|
| Product colour | Green |
|---|
System requirements
| Linux operating systems supported | Yes |
|---|
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2008 R2 x64,Windows Server 2012 R2,Windows Server 2012 R2 x64 |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 55 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Storage relative humidity (H-H) | 0 - 90 % |
|---|
Other features
| Data transfer rate | 8 GT/s |
|---|
| Intelligent Offloads | Yes |
|---|
| Intel Data Direct I/O Technology | Yes |
|---|
| Intel Virtual Machine Device Queues (VMDq) | Yes |
|---|
| Fiber Channel over Ethernet | Yes |
|---|
| Intel Ethernet Power Management | Yes |
|---|
| On-chip QoS and Traffic Management | Yes |
|---|
| PCI-SIG* SR-IOV Capable | Yes |
|---|
| Intel Flexible Port Partitioning | Yes |
|---|
| Number of VLANs | 4096 |
|---|
