Produktbeskrivning

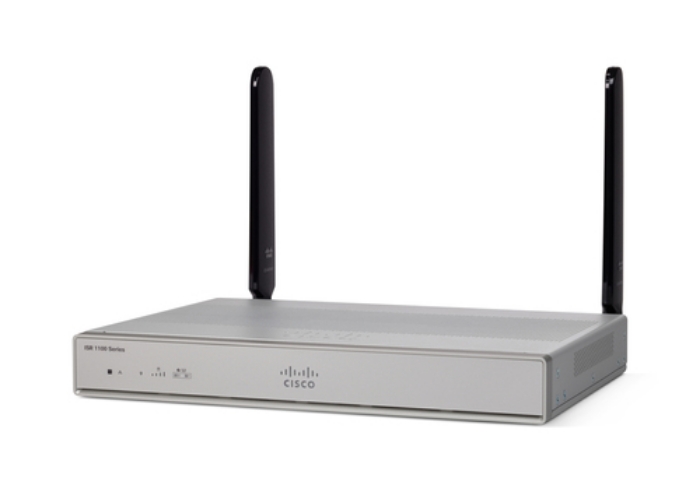

The Cisco C1116-4P Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors.



Viktiga egenskaper

Cisco C1116-4P Integrated Services Router with 4-Gigabit Ethernet (GbE) Ports, 1 VA-DSL (Annex B/J) and GE WAN Router, PoE and PoE+, 1-Year Limited Hardware Warranty (C1116-4P). Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). USB version: 3.2 Gen 1 (3.1 Gen 1). Security algorithms: 3DES, 802.1x RADIUS, AES, DES. Product colour: Silver, Country of origin: China. AC input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz



Teknisk specifikation

Ethernet WAN	Yes

Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10,100,1000 Mbit/s

VDSL	Yes

Web-based management	Yes
Quality of Service (QoS) support	Yes

Ethernet LAN (RJ-45) ports	4
USB version	3.2 Gen 1 (3.1 Gen 1)

Security algorithms	3DES,802.1x RADIUS,AES,DES
Firewall	Yes

Product colour	Silver
Country of origin	China

Antenna type	Not supported

AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)	Yes

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	0 - 65 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m

Width	323 mm
Depth	244 mm
Height	44 mm
Weight	2590 g

Package width	342.9 mm
Package depth	508 mm
Package height	162.052 mm
Package weight	3501.13 g

Harmonized System (HS) code	85176990
Quantity per pack	1 pc(s)
