Produktbeskrivning

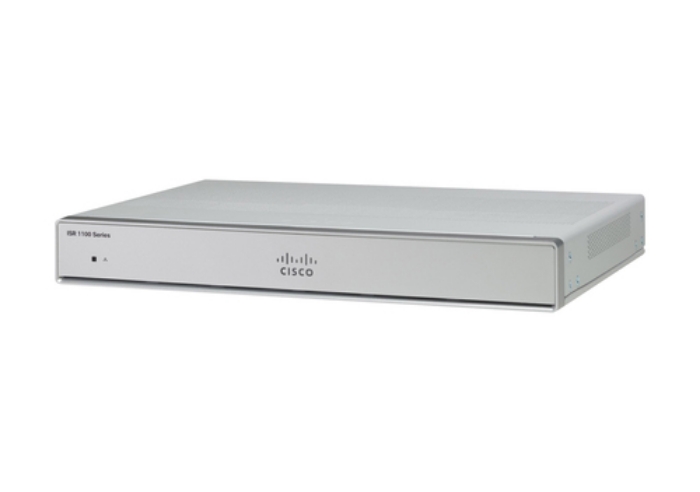

The Cisco C1111X-8P Integrated Services Router with Cisco IOS XE Software combines wired and wireless internet connectivity and comprehensive security in a single, high-performance device. Lightweight and compact with low power consumption, this business router is an excellent choice for environments where space, heat dissipation and low power consumption are critical factors.



Viktiga egenskaper

Cisco C1111X-8P Integrated Services Router with 8-Gigabit Ethernet (GbE) Dual Ports, GE WAN Ethernet Router with 8GB Memory, 1-Year Limited Hardware Warranty (C1111X-8P). Networking standards: IEEE 802.1Q, IEEE 802.1ag, Ethernet interface type: Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). USB version: 3.2 Gen 1 (3.1 Gen 1). Switching protocols: RFC 2338, Routing protocols: VRRP, Data link protocols: HDLC. Security algorithms: 3DES, 128-bit AES, 256-bit AES, DES, Authentication method: RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA512. Flash memory: 4000 MB, Internal memory: 4000 MB, Internal memory type: DRAM



Teknisk specifikation

Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	Yes

Networking standards	IEEE 802.1Q,IEEE 802.1ag
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10,100,1000 Mbit/s
VLAN support	Yes
Static route	Yes
Multicast support	Yes
Port forwarding	Yes
Frequency range	2.4 - 5 GHz

ADSL	Yes
ADSL2	Yes

Web-based management	Yes
Quality of Service (QoS) support	Yes

Ethernet LAN (RJ-45) ports	8
Gigabit Ethernet (copper) ports quantity	8
Fast Ethernet (copper) ports quantity	1
Power over Ethernet (PoE) ports quantity	6
Installed SFP modules quantity	4
USB version	3.2 Gen 1 (3.1 Gen 1)
USB ports quantity	1

DHCP client	Yes
DHCP server	Yes
Switching protocols	RFC 2338
Routing protocols	VRRP
Data link protocols	HDLC
Management protocols	IGMPv3
IPv4 & IPv6 features	Dual stack IPv4/IPv6
Supported network protocols	ACL, NAT, QoS, BFD, VRF Lite, IP SLA
Supported protocols	IPv4, IPv6, RIP, RIPv2, OSPF, EIGRP, BGP, IS-IS, IGMPv3, PIM SM, SSM, RSVP, ERSPAN, IPSLA, EEM, IKE, ACL, EVC, DHCP, FR, DNS, LISP, HSRP, RADIUS, AAA, AVC, DVMRP, MPLS, IPsec, L2TPv3, BFD

Security algorithms	3DES,128-bit AES,256-bit AES,DES
Firewall	Yes
Authentication method	RSA (748/1024/2048 bit), ECDSA (256/384 bit); Integrity: MD5, SHA, SHA-256, SHA-384, SHA512
Access Control List (ACL)	Yes
Network address translation (NAT)	Yes

Flash memory	4000 MB
Internal memory	4000 MB
Internal memory type	DRAM
Certification	UL 60950-1.and EN 60950-1. CAN/CSA C22.2 No. 60950-1. CB to IEC 60950-1, 2

Product colour	Grey
Wall mountable	Yes
LED indicators	Link,Status
Country of origin	Czech Republic

Antenna type	External
Antennas quantity	2
Detachable antenna(s)	Yes

Power consumption (typical)	66 W
Power source type	AC,PoE
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	12 V
Power over Ethernet (PoE)	Yes

Operating temperature (T-T)	32 - 104 °C
Storage temperature (T-T)	-4 - 149 °C
Operating relative humidity (H-H)	10 - 85 %
Storage relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m

Width	323 mm
Depth	244 mm
Height	44 mm
Weight	1940 g

AC adapter included	Yes
Manual	Yes
Quick start guide	Yes
Package width	342.9 mm
Package depth	508 mm
Package height	162.052 mm
Package weight	3455.78 g
Package type	Box

Harmonized System (HS) code	85176990
Quantity per pack	1 pc(s)
