Produktbeskrivning

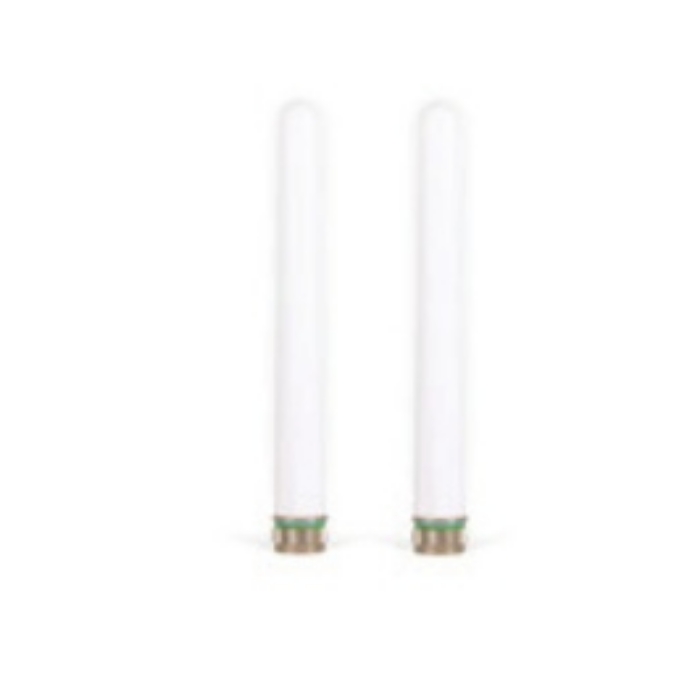

The Meraki MA-ANT-20 antenna is a multi-band, omni-directional antenna designed for use with Meraki APs that have N-type connectors. It is a versatile antenna and is suitable for a broad range of applications. The MA-ANT-20 is sold in sets of 2.



Viktiga egenskaper

Cisco Meraki MA-ANT-20. Antenna gain level (max): 7 dBi, Frequency band: 2.4 - 2.5 / 5.15 - 5.88 GHz, Antenna gain (2.4 GHz): 4 dBi. Antenna type: Omni-directional antenna, Antenna connector type: N-type, Polarization: Vertical polarization. Width: 25 mm, Depth: 25 mm, Height: 180 mm. Quantity per pack: 2 pc(s)



Teknisk specifikation

Antenna gain level (max)	7 dBi
Frequency band	2.4 - 2.5 / 5.15 - 5.88 GHz
Antenna gain (5 GHz)	7 dBi
Antenna gain (2.4 GHz)	4 dBi
Vertical beam width	45 °
Horizontal beam width	360 °

Antenna type	Omni-directional antenna
Antenna connector type	N-type
Polarization	Vertical polarization
Product colour	White

Width	25 mm
Depth	25 mm
Height	180 mm
Weight	79 g

Quantity per pack	2 pc(s)

Harmonized System (HS) code	85177100
