Produktbeskrivning

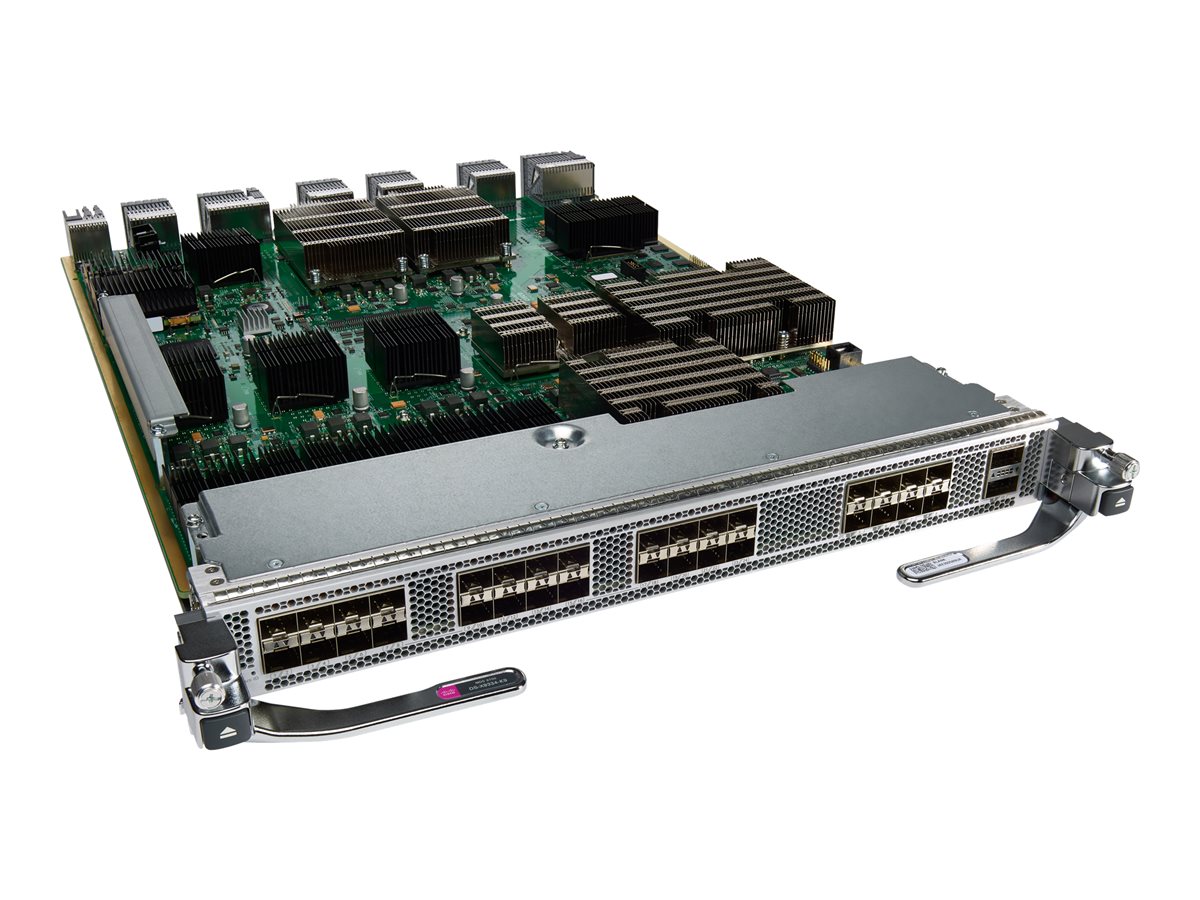

This module enables large and scalable deployment of SAN extension solutions. The SAN extension module has two independent service engines that can each be individually and incrementally enabled to scale as business requirements expand. The SAN extension module supports the full range of services available on other Cisco MDS 9000 Family Fiber Channel switching modules, including virtual SAN (VSAN), security, and traffic management services. The FCIP module uses Cisco expertise and knowledge of IP networks to deliver outstanding SAN extension performance, reducing latency for disk and tape operations with FCIP acceleration features, including FCIP write acceleration and FCIP tape write and read acceleration. Hardware-based encryption helps secure sensitive traffic with IP Security (IPsec), and hardware-based compression dramatically enhances performance for both high- and low-speed links, enabling immediate cost savings in expensive WAN infrastructure. Multiple FCIP interfaces within a single engine or across service engines can be grouped into a port channel of up to 16 links for high availability and increased aggregate throughput.



Egenskaper

Integrated IP storage services in a high-density form factor
The module supports eight 1 and 10 Gigabit Ethernet ports. Individual ports can be configured with hot-swappable shortwave and long-wave Small Form-Factor Pluggable (SFP) connections.

Integrated hardware-based VSANs and Inter-VSAN Routing (IVR)
The module enables deployment of large-scale multisite and heterogeneous SAN topologies. Integration into port-level hardware allows any port in a system or fabric to be partitioned into any VSAN. Integrated hardware-based IVR provides line-rate routing between any ports in a system or fabric without the need for external routing appliances.

Intelligent network services
The module uses VSAN technology for hardware-enforced, isolated environments in a single physical fabric, access control lists (ACLs) for hardware-based intelligent frame processing, and advanced traffic management features such as fabric wide quality of service (QoS) to facilitate migration from SAN islands to enterprise wide storage networks.

Sophisticated diagnostics
The module provides intelligent diagnostics, protocol decoding, and network analysis tools as well as integrated Cisco Call Home capability for greater reliability, faster problem resolution, and reduced service costs.



Teknisk specifikation

Typ av enhet	Expansionsmodul
Formfaktor	Insticksmodul

Portar	16Gb Fibre Channel x 24 + 10Gb FCoE x 8
Anslutningsteknik	Kabelansluten
Typ av kablage	Fibre Channel
Datalänkprotokoll	10Gb Fibre Channel over Ethernet (FCoE), 16Gb Fibre Channel
Fibre Channel	FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2, FC-PI-5, FC-LS-2, FC-SP-2, FC-SB-4, FC-DA-2, FC-MI-3, FC-MSQS, FC-BB-6, FC-SB-5
Nätverks/transportprotokoll	IPSec, FCIP, SFTP
Protokoll för administration på distans	RMON, SNMP 3, SSH-2, CLI
Statusindikatorer	Strömförsörjning, system
Funktioner	Hot-swap-byte av modul, Syslog-stöd, stöd för IPv6, stöd för redundansprotokoll för virtuell rutt (VRRP), Quality of Service (QoS), RADIUS-stöd, Automated Attendant (IVR), Internet Control Message Protocol (ICMP), Role-Based Access Control (RBAC), Authentication, Authorization and Accounting (AAA)
Standarder som följs	IEEE 802.3z, IEEE 802.1Q

Gränssnitt	24 x 16Gb Fibre Channel - SFP+ 8 x 10Gb Ethernet - SFP (mini-GBIC) 1 x RS-232 - RJ-45 2 x 1000Base-T - RJ-45

Krypteringsalgoritm	IKE, IKEv2
Standarder som följs	CISPR 22 klass A, EN 60950, EN 61000-3-2, IEC 60950, EN 61000-3-3, EN55024, UL 60950, EN50082-1, AS/NZS 3260, ICES-003 klass A, EN 60825, HMAC, AS/NZS 3548 klass A, EN 61000-3-1, IEC 60825, CAN/CSA C22.2 No. 60950, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, 21 CFR 1040, TS001

Bredd	40.39 cm
Djup	55.37 cm
Höjd	4.4 cm
Vikt	7.71 kg

Service och support	Begränsad garanti - förtida byte av hårdvara - 1 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	5 - 90 % (icke-kondenserande)

Designat för	Cisco MDS 9706 Multilayer Director, 9710 Base Config, 9710 Enhanced Config, 9710 Multilayer Director, 9718 Chassis
