Produktbeskrivning

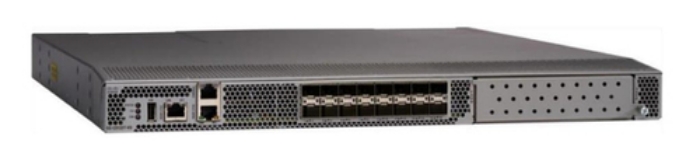

The next-generation Cisco® MDS 9132T 32-Gbps 32-Port Fibre Channel Switch (Figure 1) provides high-speed Fibre Channel connectivity from the server rack to the SAN core. It empowers small, midsize, and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the dual benefits of greater bandwidth and consolidation. Small-scale SAN architectures can be built from the foundation using this low-cost, low-power, non-blocking, line-rate, and low-latency, bi-directional airflow capable, fixed standalone SAN switch connecting both storage and host ports. Medium-size to large-scale SAN architectures built with SAN core directors can expand 32-Gbps connectivity to the server rack using these switches either in switch mode or Network Port Virtualization (NPV) mode. Additionally, investing in this switch for the lower-speed (4- or 8- or 16-Gbps) server rack gives you the option to upgrade to 32-Gbps server connectivity in the future using the 32-Gbps Host Bus Adapter (HBA) that are available today. The Cisco® MDS 9132T 32-Gbps 32-Port Fibre Channel switch also provides unmatched flexibility through a unique port expansion module (Figure 2) that provides a robust cost-effective, field swappable, port upgrade option. This switch also offers state-of-the-art SAN analytics and telemetry capabilities that have been built into this next-generation hardware platform. This new state-of-the-art technology couples the next-generation port ASIC with a fully dedicated Network Processing Unit designed to complete analytics calculations in real time. The telemetry data extracted from the inspection of the frame headers are calculated on board (within the switch) and, using an industry-leading open format, can be streamed to any analytics-visualization platform. This switch also includes a dedicated 10/100/1000BASE-T telemetry port to maximize data delivery to any telemetry receiver including Cisco Data Center Network Manager.



Viktiga egenskaper

Cisco DS-C9132T-MIK9. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 2, USB 2.0 ports quantity: 1, Console port: RS-232. Full duplex. Switching capacity: 1024 Gbit/s. Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Web-based management	Yes
ARP inspection	Yes
Configuring Location Settings (CLI)	Yes
System event log	Yes

Basic switching RJ-45 Ethernet ports quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity	2
Fiber ports quantity	8
Fiber optic connector	SFP+
Console port	RS-232
USB 2.0 ports quantity	1

10G support	Yes
Copper ethernet cabling technology	10BASE-T,100BASE-T,1000BASE-T
Full duplex	Yes

Switching capacity	1024 Gbit/s

Access Control List (ACL)	Yes
Security algorithms	AES,HTTPS,SNMPv3,SSH-2
Authentication type	AAA
SSH/SSL support	Yes

Rack mounting	Yes
Form factor	1U
Product colour	Grey
Number of fans	2 fan(s)
Ventilation system	Back-to-front airflow

Power source	AC
Power supply included	Yes
Redundant power supply (RPS) support	Yes
Number of power supply units	1
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	650 W

Power over Ethernet (PoE)	No

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 95 %
Operating altitude	-60 - 2000 m

Width	510.8 mm
Depth	439.4 mm
Height	43.7 mm
Weight	9100 g
