Produktbeskrivning

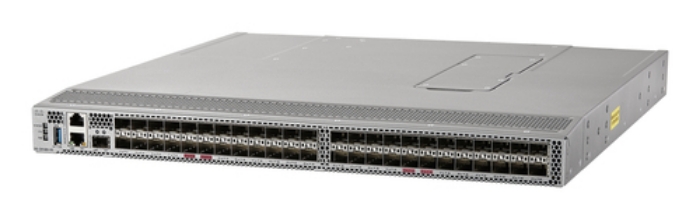

The next-generation Cisco MDS 9148V 64-Gbps 48-Port Fibre Channel Switch provides high-speed Fibre Channel connectivity for all-flash arrays and high-performance hosts. This switch offers state-of-the-art analytics and telemetry capabilities built into its next-generation Application-Specific Integrated Circuit (ASIC) chipset. This switch allows seamless transition to Fibre Channel Non-Volatile Memory Express (NVMe/FC) workloads whenever available without any hardware upgrade in the SAN. It empowers small, midsize, and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the benefits of greater bandwidth, scale, and consolidation. Some of the main benefits for a small-scale Storage Area Network (SAN) are automatic zoning, nonblocking forwarding, and smaller port groups of 24 ports. Benefits for a mid- to large-size SAN include higher scale for Fibre Channel control-plane functions, Virtual SANs, fabric login (FLOGI), device alias and name server scale, 48 ports of 64-Gbps non-oversubscribed line-rate ports, bidirectional airflow, and a fixed-form NVMe/FC-ready SAN switch with enhanced Buffer-to-Buffer (B2B) credits and capable of hardware-assisted Fibre Channel link encryption. Large-scale SAN architectures built with SAN core directors can expand 64-Gbps connectivity to the server rack using these switches configured in either switch mode or Network Port Virtualization (NPV) mode. Additionally, the switch supports enhanced diagnostic features such as Inter-Switch Link (ISL) and Host-Bus-Adapter (HBA) diagnostics, remote SFP (Read Diagnostic Parameter) diagnostics, remote port beaconing (Link Cable Beaconing) and advanced reliability features such as link level Forward Error Correction (FEC) with HBA ports.
Viktiga egenskaper
Cisco MDS 9148V. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 2, Console port: RS-232. Full duplex. Power connector: AC-in jack. Rack mounting, Form factor: 1U
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Web-based management | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 2 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Installed SFP modules quantity | 0 |
|---|
| Installed SFP+ modules quantity | 0 |
|---|
| USB Type-A ports quantity | 1 |
|---|
| Number of management ports | 1 pc(s) |
|---|
| Fiber ports quantity | 48 |
|---|
| Fiber optic connector | SFP+ |
|---|
| Console port | RS-232 |
|---|
| Power connector | AC-in jack |
|---|
Network
| 10G support | Yes |
|---|
| Full duplex | Yes |
|---|
| Rate limiting | Yes |
|---|
| Auto-sensing | Yes |
|---|
Security
| Access Control List (ACL) | Yes |
|---|
| Authentication type | RADIUS,TACACS+ |
|---|
Design
| Rack mounting | Yes |
|---|
| Form factor | 1U |
|---|
| Product colour | Grey |
|---|
| LED indicators | System |
|---|
| Number of fans | 4 fan(s) |
|---|
| Airflow direction | Back-to-front airflow |
|---|
Power
| Power source | AC |
|---|
| Power supply included | Yes |
|---|
| Redundant power supply (RPS) support | Yes |
|---|
| Number of power supply units | 2 |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| Power consumption (typical) | 228 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating relative humidity (H-H) | 10 - 90 % |
|---|
| Storage relative humidity (H-H) | 10 - 95 % |
|---|
| Operating altitude | -60 - 2000 m |
|---|
Weight & dimensions
| Width | 439.4 mm |
|---|
| Depth | 457.2 mm |
|---|
| Height | 43.7 mm |
|---|
| Weight | 9900 g |
|---|
Other features
| Bandwidth | 3000 Gbit/s |
|---|
