Produktbeskrivning

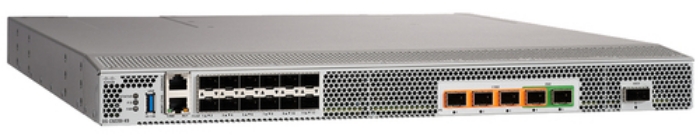

Cisco MDS 9220i Multiservice Fabric Switch , the next generation of the highly flexible, industry-leading, proven Cisco MDS 9200 Series Multiservice Switches, is an optimized platform for deploying high-performance SAN-extension solutions, distributed intelligent fabric services, and cost-effective multiprotocol connectivity for both open systems and mainframe environments. With a compact form factor and advanced capabilities, the Cisco MDS 9220i is an ideal solution for departmental and remote branch-office SANs as well as in large-scale SANs in conjunction with Cisco MDS 9700 Series Multilayer Directors.

The Cisco MDS 9220i offers up to twelve 32-Gbps Fibre Channel ports, four 1/10-, two 25-, and one 40- Gigabit Ethernet IP storage services ports, in a fixed One-Rack-Unit (1RU) form factor. The Cisco MDS 9220i connects to existing native Fibre Channel networks, protecting current investments in storage networks. The Cisco SAN Extension over IP application package license is enabled as standard on the two fixed 1/10 Gigabit Ethernet IP storage services ports, enabling features such as Fibre Channel over IP (FCIP) and compression on the switch without the need for additional licenses.



Viktiga egenskaper

Cisco MDS 9220i. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 2, Console port: RS-232. Networking standards: IEEE 802.3, IEEE 802.1Q. Power connector: AC-in jack. Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes

Basic switching RJ-45 Ethernet ports quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
USB Type-A ports quantity	1
Fiber ports quantity	18
Console port	RS-232
Power connector	AC-in jack

Networking standards	IEEE 802.3,IEEE 802.1Q
10G support	Yes
Auto-sensing	Yes
VLAN support	Yes

Access Control List (ACL)	Yes
Authentication type	RADIUS,TACACS+
SSH/SSL support	Yes
Security algorithms	AES,SSH-2,SNMPv3

Rack mounting	Yes
Form factor	1U
Product colour	Silver
LED indicators	Yes
Airflow direction	Front-to-back airflow

Power source	AC
Power supply included	Yes
Redundant power supply (RPS) support	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	240 W

Power over Ethernet (PoE)	No

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 95 %
Operating altitude	-60 - 2000 m

Width	439.4 mm
Depth	511.1 mm
Height	43.7 mm
Weight	9800 g
