Produktbeskrivning

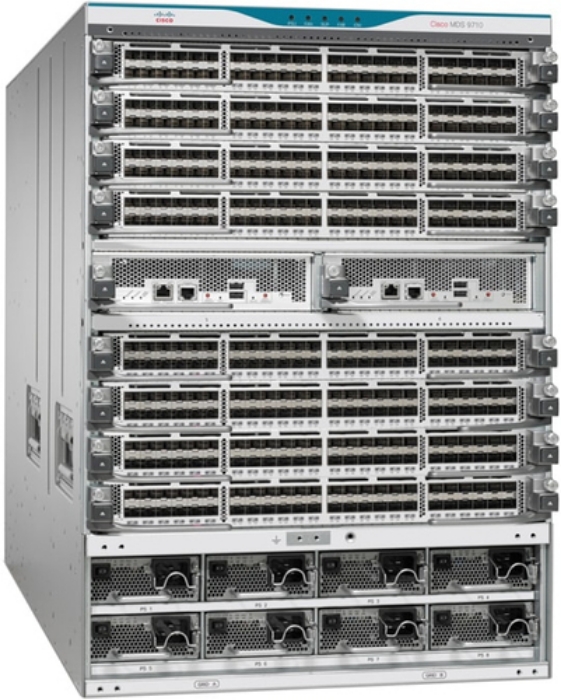

Enable enterprise clouds. Transform large storage networks. Lower operating costs. Deploy Fibre Channel, IBM Fibre Connectivity (FICON), Fibre Channel over IP (FCIP), and Fibre Channel over Ethernet (FCoE) on a single fabric. With the Cisco® MDS 9710 Multilayer Director (Figure 1), you’ll meet the stringent requirements of large virtualized storage environments. As a director-class SAN switch, the MDS 9710 uses the same operating system and management interface as other Cisco data center switches. It brings intelligent capabilities to a high-performance, protocol-independent switch fabric. You’ll gain uncompromising availability, security, and scalability; simplified management; and the capability to flexibly integrate new technologies.

Reduce total cost of ownership with SAN consolidation

With the amount of data growing exponentially, organizations need efficient, cost-effective, large-scale SANs. Scale while managing your Total Cost of Ownership (TCO) with industry-leading port densities of up to 384 32-Gbps Fibre Channel ports per chassis. Deploy 1.5-Tbps front-panel Fibre Channel performance per slot and up to 24-Tbps front-panel Fibre Channel line-rate nonblocking system-level switching. Deploy intelligent fabric services, VSANs for consolidating physical SAN islands while maintaining logical boundaries, and IVR for sharing resources across VSANs. Consolidate your data into fewer, larger, and more manageable SANs, thus reducing the hardware footprint and associated Capital Expenditures (CapEx) and Operating Expenses (OpEx). On unified fabrics with converged LAN and SAN environments using lossless Ethernet, multihop FCoE protects your investments in existing storage infrastructure with any-to-any connectivity across multiple protocols.

Enterprise-class availability

The MDS 9710 is designed from the beginning for high availability. In addition to meeting the basic requirements of nondisruptive software upgrades and redundancy of all critical hardware components, the MDS 9710 software architecture offers outstanding availability. The Cisco MDS 9700 Series Supervisor-1 Module automatically restarts failed processes, making the MDS 9710 exceptionally robust. In the rare event that a supervisor module is reset, complete synchronization between the active and standby supervisor modules helps ensure stateful failover with no disruption of traffic.



Viktiga egenskaper

Cisco MDS 9710 V2. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 2, Console port: RS-232. Full duplex. Power connector: AC-in jack. Rack mounting



Teknisk specifikation

Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes

Basic switching RJ-45 Ethernet ports quantity	2
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
USB Type-A ports quantity	1
Number of management ports	1 pc(s)
Fiber optic connector	SFP+
Console port	RS-232
Power connector	AC-in jack

10G support	Yes
Full duplex	Yes
Auto-sensing	Yes
Rate limiting	Yes

Access Control List (ACL)	Yes
Security algorithms	SSH-2,SNMPv3
Authentication type	RADIUS,TACACS+

Rack mounting	Yes
Product colour	Grey
LED indicators	System
Airflow direction	Front-to-back airflow

Compliance certificates	CE,UL,Federal Communications Commission (FCC),ICES,VCCI

Power source	AC
Power supply included	Yes
Redundant power supply (RPS) support	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz

Power over Ethernet (PoE)	No

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90 %
Storage relative humidity (H-H)	10 - 90 %
Operating altitude	-60 - 2000 m

Width	403.9 mm
Depth	553.7 mm
Height	44 mm
Weight	9070 g
