Produktbeskrivning

Cisco offers a comprehensive range of pluggable optical modules for the Cisco ONS family of multiservice platforms. The wide variety of modules gives you flexible and cost-effective options for all types of client interfaces. Cisco offers a range of GBICs for Gigabit Ethernet use, a wide variety of SFP modules, XFP modules and has recently introduced SFP+, CXP and CFP pluggable modules. These small, modular optical interface transceivers offer a convenient and cost-effective solution for an array of applications in the data center, campus, metropolitan-area access and ring network, storage area network, and long-haul network.



Viktiga egenskaper

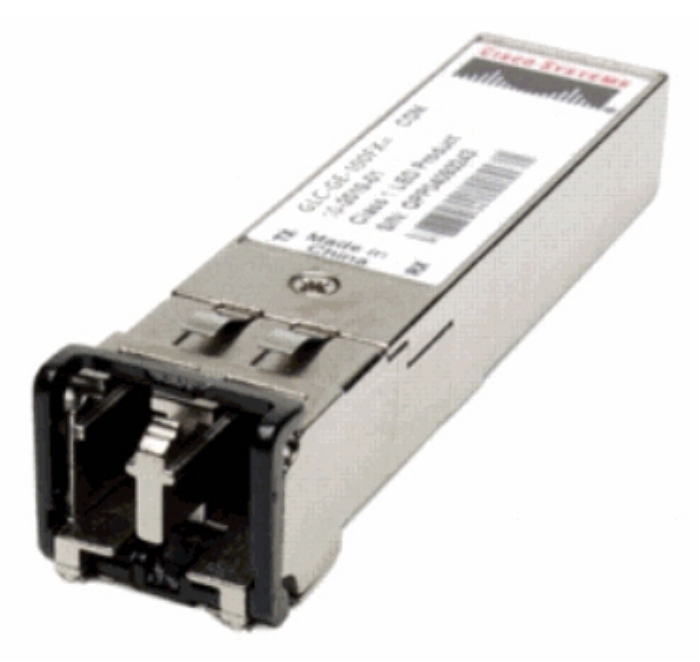

Cisco MA-SFP-1GB-LX10. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Certification: MSA. Width: 13.4 mm, Depth: 56.5 mm, Height: 8.5 mm



Teknisk specifikation

SFP transceiver type	Fiber optic
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Single-mode fiber (SMF) supported	Yes
Fiber optic connector	LC
Fiber cable diameters supported (core/cladding)	9/125 µm
SFP transceiver standard	LX
Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Cabling technology	1000BASE-LX10
Auto MDI/MDI-X	Yes

Hot-Plug support	Yes
Certification	MSA

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 80 %
Storage relative humidity (H-H)	10 - 85 %

Width	13.4 mm
Depth	56.5 mm
Height	8.5 mm

Harmonized System (HS) code	85369010
