Produktbeskrivning

SFP Transceivers are compliant with the Multi-Source Agreement (MSA) ensuring compatibility with a wide range of networking equipment. Select your choice or Copper or Fiber versions that support Fast Ethernet, Gigabit and 10G Ethernet speeds.



Viktiga egenskaper

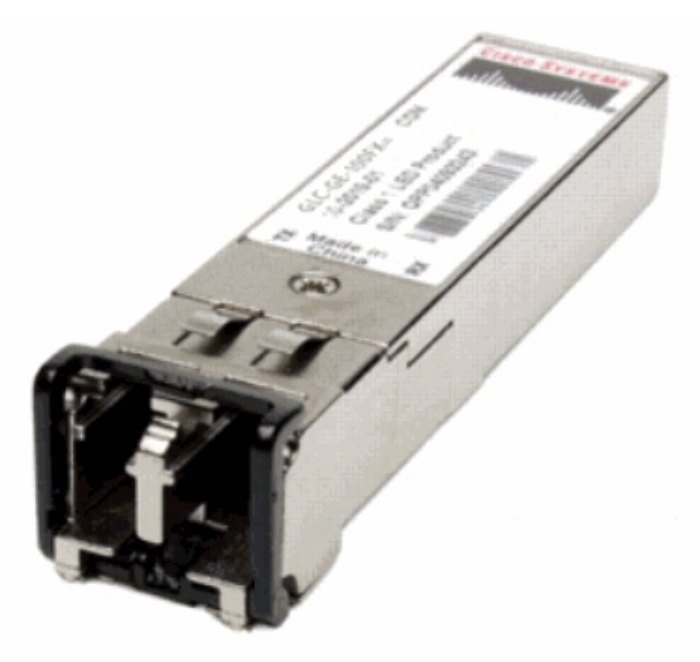

Cisco Meraki MA-SFP-1GB-SX. SFP transceiver type: Fiber optic, Maximum data transfer rate: 1000 Mbit/s, Interface type: SFP. Certification: MSA. Width: 13.4 mm, Depth: 56.5 mm, Height: 8.5 mm



Teknisk specifikation

SFP transceiver type	Fiber optic
Maximum data transfer rate	1000 Mbit/s
Interface type	SFP
Multi-mode fiber (MMF) supported	Yes
Fiber optic connector	LC
SFP transceiver standard	SX
Wavelength	850 nm
Networking standards	IEEE 802.3,IEEE 802.3ab,IEEE 802.3u
Cabling technology	1000BASE-SX
Auto MDI/MDI-X	Yes

Hot-Plug support	Yes
Certification	MSA

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 80 %
Storage relative humidity (H-H)	10 - 85 %

Width	13.4 mm
Depth	56.5 mm
Height	8.5 mm

Harmonized System (HS) code	85369010
