Produktbeskrivning

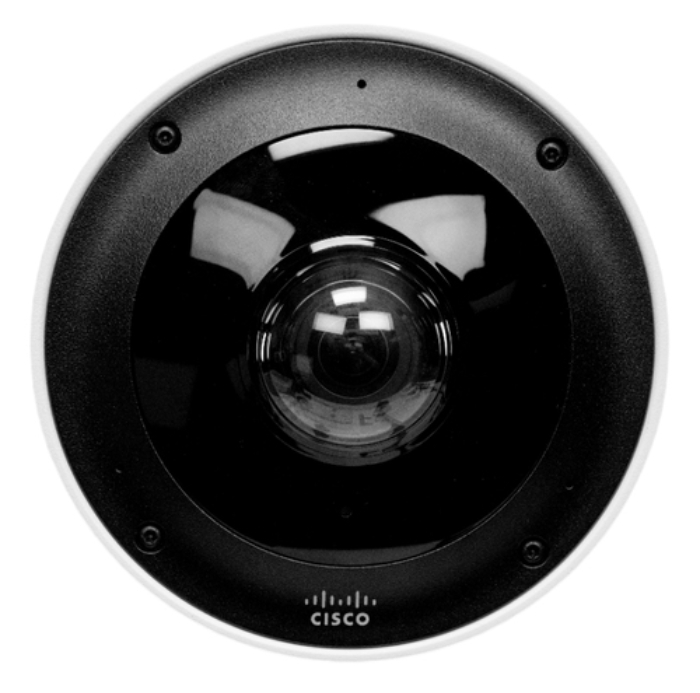

The Meraki MV93, part of the third-generation MV smart camera family, combines physical security and advanced analytics in a fisheye form factor. Easy to install and with a 360° field of view (FoV), MV93 provides complete visibility and intelligent security for a variety of outdoor applications.

Security that tells a complete story

With up to 2880x2880 video resolution and 360-degree views, MV93 captures the full picture, providing broad context and clear detail when needed. This panoramic overview increases situation awareness, making surveillance more efficient.

Compatible with a variety of mounting accessories, outdoor-rated MV93 series cameras can be installed in a variety of deployment scenarios, so you can see around every corner. The 360° field of view and IR illumination make it ideal for improving safety and security for parking lots, warehouses, and other open spaces, even in low light.

Compatible with a variety of mounting accessories, outdoor-rated MV93 series cameras can be installed in a variety of deployment scenarios, so you can see around every corner. The 360° field of view and IR illumination make it ideal for improving safety and security for parking lots, warehouses, and other open spaces, even in low light.



Viktiga egenskaper

Cisco Meraki MV93M-HW. Type: IP security camera, Placement supported: Outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Field of view (FOV) angle: 180°, Angle of rotation: 360°, Lens viewing angle, horizontal: 180°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.3 mm (1 / 2.3"), Number of effective pixels (H x V): 4072 x 3046 pixels. Focal length range: 0 - 1.6 mm



Teknisk specifikation

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Black,White
International Protection (IP) code	IP67
IK code	IK10+

Field of view (FOV) angle	180 °
Angle of rotation	360 °
Lens viewing angle, horizontal	180 °
Lens viewing angle, vertical	180 °
Camera shutter speed	1/30 - 1/32000 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.3 "
Progressive scan	Yes
Number of effective pixels (H x V)	4072 x 3046 pixels

Number of lenses	1
Focal length range	0 - 1.6 mm

Night vision	Yes
Night vision distance	20 m
LED type	IR

Maximum resolution	2112 x 2112 pixels
Total megapixels	4.2 MP
Video formats supported	H.264
Video compression formats	H.264
Frame rate	24 fps

Built-in microphone	Yes

Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Gigabit Ethernet
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Cabling technology	10/100/1000Base-T(X)

Built-in HDD	No
Built-in SSD	Yes
SSD capacity	512 GB

Ethernet LAN (RJ-45) ports	1

Video motion detection	Yes
Security algorithms	256-bit AES,AES,EAP-TTLS,TKIP,WPA,WPA2-Enterprise,WPA2-PSK

Reset button	Yes

Power source type	PoE
Power consumption (max)	25.5 W
DC output voltage	12

Operating temperature (T-T)	-40 - 50 °C

Height	67.9 mm
Diameter	137.68 mm
Weight	1050 g

Number of cameras	1
