Produktbeskrivning

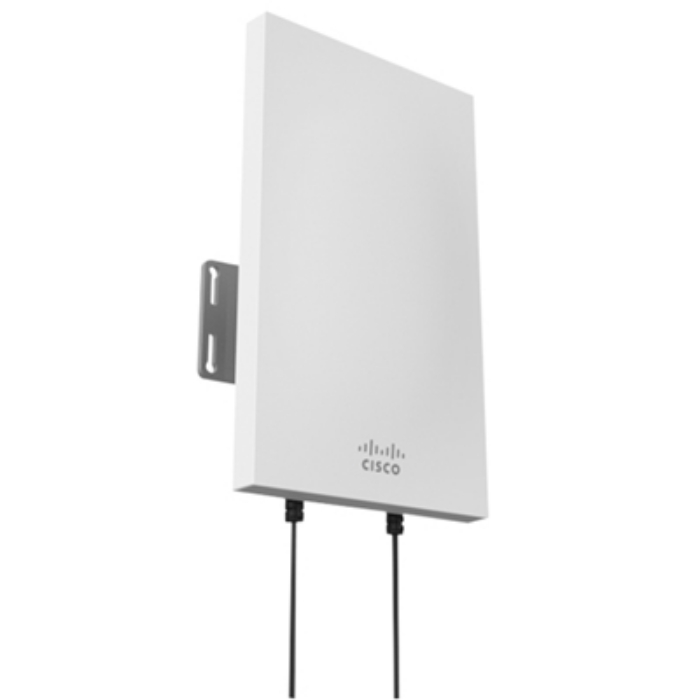

The Cisco Meraki ANT-27 sector antenna is a 9 / 12 dBi, MIMO, dual–band 2.4 and 5 GHz antenna ideal for providing client coverage over focused areas or creating backhaul links. It is designed for use with Meraki APs that have N-type connectors.



Viktiga egenskaper

Cisco Meraki MA-ANT-27. Antenna gain level (max): 12 dBi, Frequency band: 2.400 – 2.500, 5.150 – 5.875, Gain: 9 / 12 dBi. Antenna type: Sector antenna, Antenna connector type: N-type, Product colour: White. Width: 140 mm, Depth: 48 mm, Height: 230 mm. Package type: Box. Quantity per pack: 1 pc(s)



Teknisk specifikation

Antenna gain level (max)	12 dBi
Frequency band	2.400 – 2.500, 5.150 – 5.875 GHz
Gain	9 / 12 dBi
Antenna gain (2.4 GHz)	9 dBi
Antenna gain (5 GHz)	12 dBi
Horizontal beam width	65 °
Vertical beam width	18 °

Antenna type	Sector antenna
Antenna connector type	N-type
Ultraviolet (UV) resistant	Yes
Mounting	Wall/Pole
Purpose	Indoor & outdoor
Housing material	Plastic
Product colour	White

Operating temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %

Width	140 mm
Depth	48 mm
Height	230 mm
Weight	630 g

Quantity per pack	1 pc(s)
Mounting kit	Yes
Package type	Box

Harmonized System (HS) code	85177100
