Produktbeskrivning

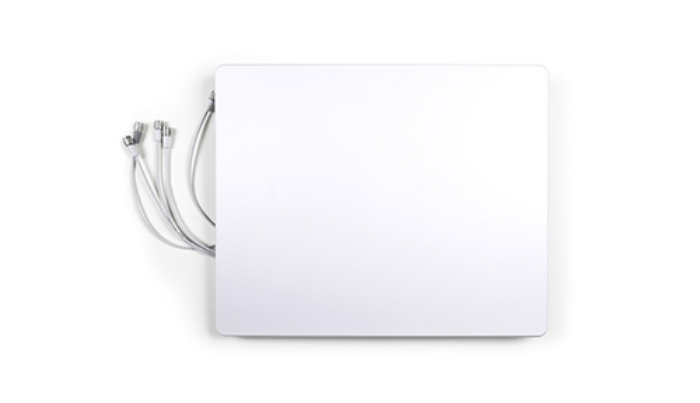

The Narrow Patch antenna is ideal for high ceiling (25 ft+) aesthetic consensus installations in high density applications and where APs are covering high density users in small zones. Some example use cases are in large lecture halls/stadiums as well as event venue centers. This antenna supports Meraki’s smart antenna capabilities. The price shown is for a 5-connector model; the Narrow Patch antenna can be purchased with 5 or 6 connectors.



Viktiga egenskaper

Cisco MA-ANT-3-F6. Antenna gain level (max): 11.2 dBi, Frequency band: 2.4/5 GHz, Antenna gain (2.4 GHz): 11.2 dBi. Antenna connector type: RP-TNC, Product colour: White. Width: 660 mm, Depth: 530 mm, Height: 130 mm



Teknisk specifikation

Antenna gain level (max)	11.2 dBi
Frequency band	2.4/5 GHz
Antenna gain (2.4 GHz)	11.2 dBi
Antenna gain (5 GHz)	10.8 dBi
Vertical beam width (2.4 GHz)	30 °
Horizontal beam width (2.4 GHz)	30 °
Vertical beam width (5 GHz)	30 °
Horizontal beam width (5 GHz)	30 °

Antenna connector type	RP-TNC
Product colour	White

Operating temperature (T-T)	0 - 40 °C

Width	660 mm
Depth	530 mm
Height	130 mm

Harmonized System (HS) code	85177100
