Produktbeskrivning

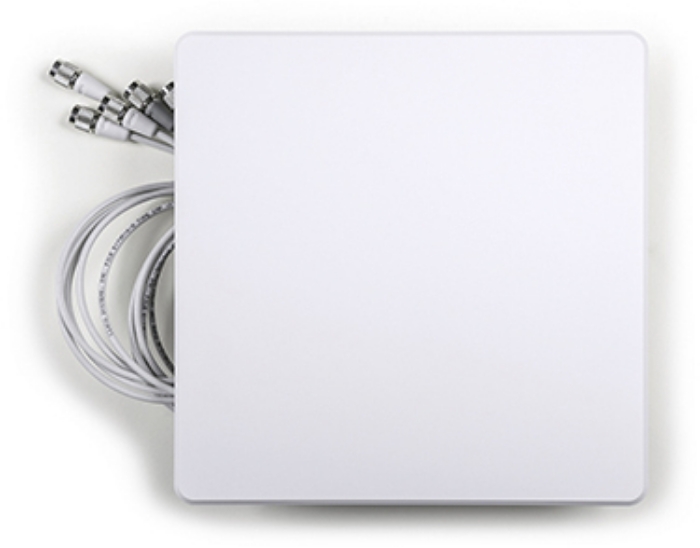

The Wide Patch antenna is ideal for wall-mounted deployments, aesthetic consensus installations in low density applications and wall mounted or ceiling mounted below 25 ft in high density applications. Some example use cases are in vestibules with very high ceilings but few devices connecting and lecture halls where install is close to the users. This antenna supports Meraki’s smart antenna capabilities. The price shown is for a 5-connector model; the Wide Patch antenna can be purchased with 5 or 6 connectors.



Viktiga egenskaper

Cisco Meraki MA-ANT-3-E6. Antenna gain level (max): 7 dBi, Frequency band: 2.4/5 GHz, Antenna gain (2.4 GHz): 7 dBi. Antenna connector type: RP-TNC, Product colour: White. Height: 23.5 mm, Diameter: 27.5 cm, Weight: 1.17 kg



Teknisk specifikation

Antenna gain level (max)	7 dBi
Frequency band	2.4/5 GHz
Antenna gain (5 GHz)	6.3 dBi
Antenna gain (2.4 GHz)	7 dBi
Vertical beam width (2.4 GHz)	60 °
Horizontal beam width (2.4 GHz)	60 °
Vertical beam width (5 GHz)	60 °
Horizontal beam width (5 GHz)	60 °

Antenna connector type	RP-TNC
Product colour	White

Operating temperature (T-T)	0 - 40 °C

Height	23.5 mm
Diameter	275 mm
Weight	1170 g

Harmonized System (HS) code	85177100
