Produktbeskrivning

Compact design perfect for indoor spaces like entryways, hallways, and general purpose areas



Viktiga egenskaper

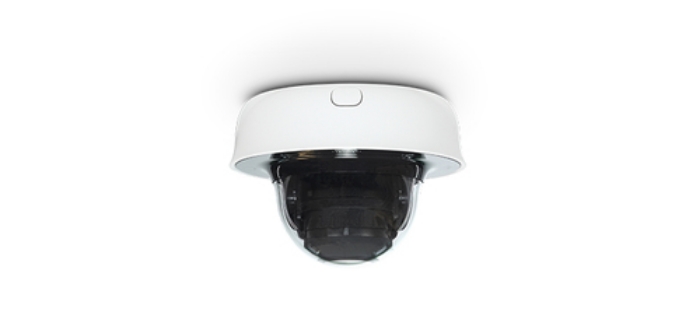

Cisco MV13. Type: IP security camera, Placement supported: Indoor, Connectivity technology: Wired & Wireless. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Lens viewing angle, horizontal: 101.3°, Lens viewing angle, vertical: 54.4°, Lens viewing angle, diagonal: 119.7°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.8 mm (1 / 2.8"). Detect distance: 86.9 m, Observe distance: 34.5 m, Recognize distance: 17.4 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Day/night mode	Yes

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Black,White

Lens viewing angle, horizontal	101.3 °
Lens viewing angle, vertical	54.4 °
Lens viewing angle, diagonal	119.7 °
Camera shutter speed	1/30 - 1/32000 s

Sensor type	CMOS
Number of sensors	1
Optical sensor size	1/2.8 "

Detect distance	86.9 m
Observe distance	34.5 m
Recognize distance	17.4 m
Maximum aperture number	2
Identify distance	8.7 m
Fixed focal length	3.3 mm

Night vision	Yes
Night vision distance	15 m
LED type	IR

Maximum resolution	3854 x 2176 pixels
Total megapixels	8.41 MP
Video compression formats	H.264
Video recording	Yes
Frame rate	24 fps
Video streaming	Yes

Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.1x,IEEE 802.3af
Wi-Fi standards	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Frequency band	2.412 - 2.484, 5.150 - 5.250, 5.250 - 5.350, 5.470 - 5.600, 5.660 - 5.725, 5.725 - 5.825 GHz

Built-in HDD	No
Built-in SSD	Yes
SSD capacity	265 GB

Ethernet LAN (RJ-45) ports	1

Video motion detection	Yes
Security algorithms	256-bit AES,AES,EAP-TTLS,TKIP,WPA,WPA2-Enterprise,WPA2-PSK

Reset button	Yes

Power source type	PoE
Power consumption (Power over Ethernet (PoE))	12.95 W

Operating temperature (T-T)	0 - 40 °C

Height	83.5 mm
Diameter	120 mm
Weight	430 g

Number of cameras	1
Mounting kit	Yes
