Produktbeskrivning

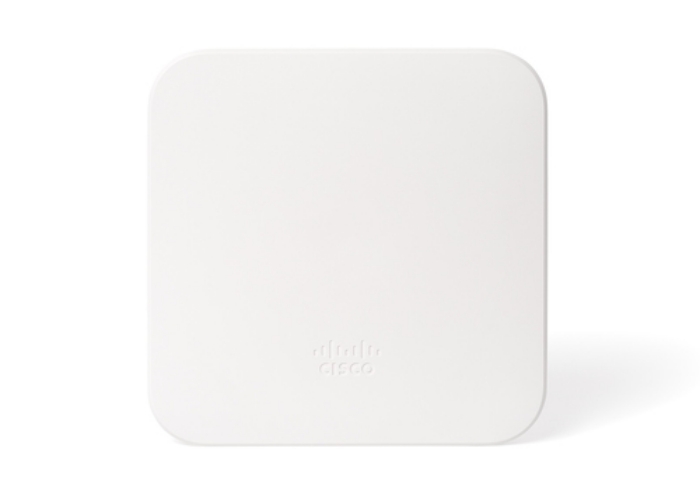

MG21 is a Meraki cellular gateway device. It will allow customers to use Meraki gear with cellular as a primary active uplink. MG21 only has a cellular connection as its uplink and acts as a wired uplink to devices that are attached to it (i.e., MX or any other router). MG21 can work with any routing device, Meraki or non-Meraki. With additional 802.3af compatibility, the MG can be placed anywhere and powered via power over ethernet (PoE) like any access point. This gives users the option for optimal physical placement for signal quality – a cornerstone for wireless WAN communications.

MG series and Meraki cloud management: a powerful combo
All Meraki devices are managed via the Meraki cloud, with an intuitive browser-based interface. The MG series are self- configuring and managed over the web, and can be rapidly deployed at remote locations without any assistance from end-users. Meraki Cloud services monitor all devices 24x7 and deliver real-time alerts if any devices encounters a problem. Remote diagnostics tools enable real-time troubleshooting through any web browser. New features and enhancements are delivered seamlessly over the web, so you never have to manually download software updates or worry about missing critical security vulnerability patches.



Viktiga egenskaper

Cisco Meraki MG21. Device type: Cellular network gateway, Product colour: White, Mounting: Wall mounting. Ethernet LAN interface type: Gigabit Ethernet, Ethernet LAN data rates: 1000 Mbit/s. Data network: LTE, 4G standard: LTE. Antenna type: Internal. Power source type: DC, Output current: 0.35 A



Teknisk specifikation

Device type	Cellular network gateway
Product colour	White
Mounting	Wall mounting
Built-in display	No

Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	1000 Mbit/s

Data network	LTE
4G standard	LTE
Number of SIM cards	1

Ethernet LAN (RJ-45) ports	2

Antenna type	Internal

Power source type	DC
Output current	0.35 A

Operating temperature (T-T)	-30 - 50 °C
Operating relative humidity (H-H)	5 - 95 %

Width	160.45 mm
Depth	160.45 mm
Height	34.45 mm
Weight	497 g

Harmonized System (HS) code	85176990
