Produktbeskrivning

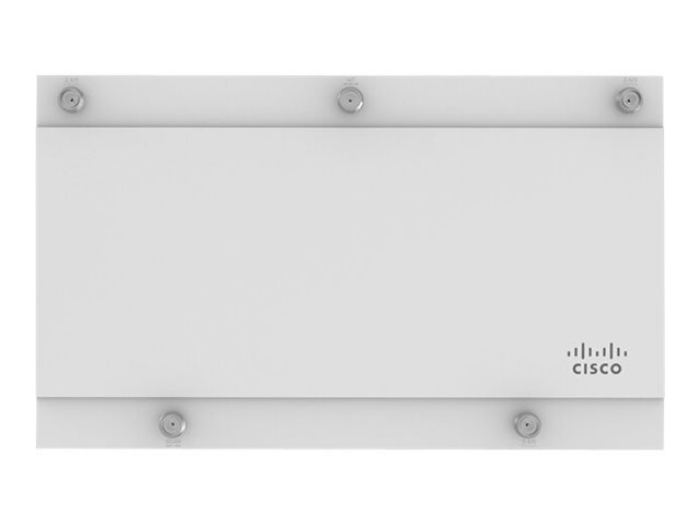

The Cisco Meraki MR42E is a cloud-managed 3x3 MIMO 802.11ac Wave 2 access point. Designed for general purpose deployments in offices, schools, shops, and hotels, the MR42E provides performance, security, and manageability.

The MR42E supports a variety of smart, auto-detectable external antenna that can deliver both focused, targeted coverage in challenging RF scenarios as well as broader coverage in a variety of environments, including those with very high ceilings. These antenna include panel and panel downtilt omni-directionals, wide patch, and narrow patch options.

A dedicated third radio provides real-time WIDS/WIPS with automated RF optimization. In addition, an integrated fourth radio delivers Bluetooth Low Energy (BLE) scanning and Beaconing functionality. The MR42E is 100% cloud-managed via the intuitive, browser-based Meraki Dashboard, and includes a rich, out-of-the-box feature set without additional cost or complexity.



Egenskaper

Aggregate data rate of up to 1.9 Gbps
A 5 GHz 3x3:3 802.11ac Wave 2 radio and a 2.4 GHz 2x2:2 802.11ac radio offer a combined aggregate dual-band data rate of 1.9 Gbps. Supports up to 1300 Mbps in the 5 GHz band (with 3SS/VHT80 clients) and 600 Mbps in the 2.4 GHz band (with 3SS/VHT40 clients). Technologies like transmit beamforming and enhanced receive sensitivity allow the MR42E to support a higher client density than typical enterprise-class access points, resulting in fewer required APs for a given deployment.

Dedicated third radio delivers 24x7 wireless security and RF analytics
The MR42E's sophisticated, dedicated dual-band third radio scans the environment continuously, characterizing RF interference and containing wireless threats like rogue access points. No more need to choose between wireless security, advanced RF analysis, and serving client data: a dedicated third radio means that all three occur in real-time, without any impact to client traffic or AP throughput.

Bluetooth Low Energy beacon and scanning
An integrated Bluetooth Low Energy radio provides seamless deployment of BLE beacon functionality and effortless visibility of BLE devices within range of the AP. The MR42E enables the location-aware applications and engagement right out of the box.

Automatic cloud-based RF optimization
The MR42E's sophisticated, automated RF optimization means that there is no need for the dedicated hardware and RF expertise typically required to tune a wireless network. The real-time fullspectrum RF analysis data collected by the dedicated third radio is continuously fed back to the Meraki cloud. The Meraki cloud then automatically tunes the MR42E's channel selection, transmit power, and client connection settings for optimal performance under the challenging RF conditions.

Secure wireless environments using 24x7 Air Marshal
No longer choose between a wireless intrusion prevention system (WIPS) and serving client data: thanks to the dedicated third radio, Air Marshal, a highly optimized built-in WIPS, scans continuously for threats and remediates them as commanded, all without disrupting client service.

Integrated enterprise security and guest access
The MR42E features integrated, easy-to-use security technologies to provide secure connectivity for employees and guests alike. Advanced security features such as AES hardware-based encryption and WPA2-Enterprise authentication with 802.1X and Active Directory integration provide wire-like security while still being easy to configure. One-click guest isolation provides secure, Internet-only access for visitors. PCI compliance reports check network settings against PCI requirements to simplify secure retail deployments.

Application-aware traffic shaping
The MR42E features an integrated Layer 7 packet inspection, classification, and control engine, enabling you to set QoS policies based on traffic type. Prioritize your mission-critical applications, while setting limits on recreational traffic, e.g., peer-to-peer and video streaming.

Voice and video optimization
Industry standard QoS features are easy to configure like Wireless Multi Media (WMM) access categories, 802.1p, and DSCP.

Low-profile, environment-friendly design
Despite its robust feature set, the MR42E is packaged in a sleek, low-profile enclosure that blends seamlessly into any environment. Energy-saving components and intelligent power management techniques deliver excellent energy-efficient performance and mean that pollution, material utilization, and your electric bill are kept to a minimum.

Self-configuring, self-optimizing, self-healing
When plugged in, the MR42E automatically connects to the Meraki cloud, downloads its configuration, and joins the appropriate network. The MR42E then self-optimizes, determining the ideal channel, transmit power, and client connection parameters. As necessary, it will also self-heal, responding automatically to switch failures and other errors.

Advanced analytics
Drill down into the details of your network usage with highly granular traffic analytics. Extend your visibility into the physical world with journey tracking through location analytics. View visitor numbers, dwell time, repeat visit rates, and track trends. View real-time, per-radio spectrum analytics to troubleshoot nearby interference. Analyze AP events, client utilization, and bandwidth usage on a per-radio basis. Fully customize your analysis with raw data available via simple APIs.



Teknisk specifikation

Typ av enhet	Trådlös åtkomstpunkt
Bredd	26.8 cm
Djup	16 cm
Höjd	4.3 cm
Vikt	1.09 kg

Formfaktor	Extern
Anslutningsteknik	Trådlös
Dataöverföringshastighet	1.9 Gbps
Datalänkprotokoll	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2
Nätverks/transportprotokoll	IPSec
Molnhanterad	Ja
Frekvensband	2.4 GHz, 5 GHz
Statusindikatorer	Strömförsörjning, Starttillstånd, status
Funktioner	Hårdvarukryptering, trafikbegränsning, fast programvara kan uppdateras, Wireless Intrusion Detection System (WIDS), stöd för Wi-Fi Multimedia (WMM), Quality of Service (QoS), Maximum Ratio Combining (MRC), 3T3R MIMO-teknik, Wireless Intrusion Prevention System (WIPS), märkt VLAN, uttag för säkerhetslås (kabellås säljs separat), stöd för DiffServ Code Point (DSCP), MU-MIMO-teknik, Bluetooth Low Energy Beaconing, Unscheduled Automatic Power Save Delivery (U-APSD), SU-MIMO-teknologi
Krypteringsalgoritm	AES, TKIP, WPA, WPA2-PSK, WPA2-Enterprise, WEP, EAP-SIM
Verifieringsmetod	MS-CHAP v.2
Standarder som följs	IEEE 802.1Q, IEEE 802.1p, IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11e, IEEE 802.11n, IEEE 802.11k, IEEE 802.3at, IEEE 802.11ac, IEEE 802.11r, IEEE 802.11u

Antenn	Extern löstagbar

Gränssnitt	1 x 1000Base-T (PoE+) - RJ-45 5 x antenn - RP-TNC

Standarder som följs	ICES-003, EN55024, FCC Part 15 B, RSS-102, FCC Part 15 C, RoHS, FCC Part 2, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC Part 15 E, EN 62311, EN 300 328, EN 50385, LP0002, RSS-247, EN 301 489-1-17, EN 62479, EN 301 893, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1, EMI Class B, AS/NZS 2772

Stöd för PoE (Power Over Ethernet)	PoE+
Energiförbrukning vid drift	20 Watt

Service och support	Begränsad garanti - utbyte av delar i förväg - livstid

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	5 - 95 % (icke-kondenserande)
