Produktbeskrivning

Tri-band 802.11ax-compatible access point with separate radios dedicated to security, RF management, and Bluetooth® coupled with dual Ethernet ports and a USB port for added connectivity options.

Software configurable flex radio architecture for 6 GHz support

MR57 supports a software defined flex radio which can be toggled between a 5 GHz and 6 GHz. This provides an option to operate MR57 in either a dual 5 GHz configuration or a true tri-band configuration. Tri-band configuration unlocks the use of new spectrum in the 6 GHz frequency range which provides additional channels to increase throughput and reduce interference and noise from legacy devices. 6 GHz support ensures that the MR57 supports future technologies.

High Performance 802.11ax compatible wireless

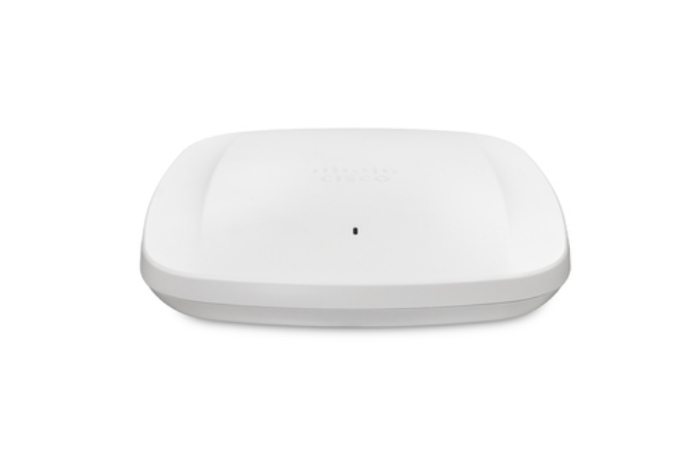

The Cisco Meraki MR57 is a cloud-managed 4x4:4 802.11ax compatible access point that raises the bar for wireless performance and efficiency. Designed for next-generation deployments in offices, schools, hospitals, retail shops, and hotels, the MR57 offers high throughput, enterprise-grade security, and simple management. The MR57 provides a maximum of 7.78 Gbps* aggregate frame rate with concurrent 2.4 GHz, 5 GHz and 6 GHz radios. A dedicated fourth radio provides real-time WIDS/WIPS with automated RF optimization, and a fifth integrated IoT radio delivers Bluetooth scanning and beaconing. With the combination of cloud management, high-performance hardware, multiple radios, and advanced software features, the MR57 makes an outstanding platform for the most demanding of uses—including high-density deployments and bandwidth or performance-intensive applications like voice (Cisco WebEx) and high-definition video.

Support for dual Ethernet ports to enable high availability

MR57 will support dual 5 Gigabit mGig Ethernet ports for high availability or for link aggregation. These ports can also be used for power-sharing to power up the AP and fully support the required functionality. The secondary Ethernet port can also be used for power and data sharing* or in a high availability mode* for added resiliency.

MR57 and Meraki cloud management

Management of the MR57 is through the Meraki cloud, with an intuitive browser-based interface that enables rapid deployment without time-consuming deployment complexity and time consuming staging process. Since the MR57 is self-configuring and managed over the web, it can be deployed at a remote location in a matter of minutes, even without on-site IT staff. 24x7 monitoring via the Meraki cloud delivers real-time alerts if the network encounters problems. Remote diagnostic tools enable immediate troubleshooting over the web so that distributed networks can be managed with a minimum of hassle. New features, bug fixes, and enhancements are delivered seamlessly over from the dashboard.



Viktiga egenskaper

Cisco MR57. 2.4 GHz, 5 GHz, 6 GHz. Security algorithms: EAP-SIM, EAP-TLS, EAP-TTLS, WEP, WPA, WPA2-Enterprise, WPA2-PSK, WPA3-Enterprise, WPA3-Personal. Ethernet LAN data rates: 1000,2500,5000 Mbit/s. Power over Ethernet (PoE). Product colour: White. Power consumption (max): 40 W



Teknisk specifikation

2.4 GHz	Yes
6 GHz	Yes
5 GHz	Yes
Ethernet LAN data rates	1000,2500,5000 Mbit/s
Networking standards	IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11e,IEEE 802.11g,IEEE 802.11h,IEEE 802.11k,IEEE 802.11r,IEEE 802.11u,IEEE 802.11w
MIMO	Yes
MIMO type	Multi User MIMO
Spread spectrum method	OFDMA

Security algorithms	EAP-SIM,EAP-TLS,EAP-TTLS,WEP,WPA,WPA2-Enterprise,WPA2-PSK,WPA3-Enterprise,WPA3-Personal

Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes

Power over Ethernet (PoE)	Yes
Power consumption (max)	40 W

Placement	Table,Wall
Product colour	White
LED indicators	Yes

Antenna type	Internal

Width	260 mm
Depth	260 mm
Height	56 mm
Weight	1700 g

Operating relative humidity (H-H)	5 - 95 %
Operating temperature (T-T)	0 - 40 °C
