Produktbeskrivning
Cisco Meraki MS130 switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS130 series features a variety of options
designed to meet the diverse needs of branch and campus deployments.
With 10 different models, capable of providing up to 740W of power over a variety of port densities, including SFP+ capable uplinks, the MS130 line is fully ready
to support future wireless infrastructure deployments across a variety of different environments.
Viktiga egenskaper

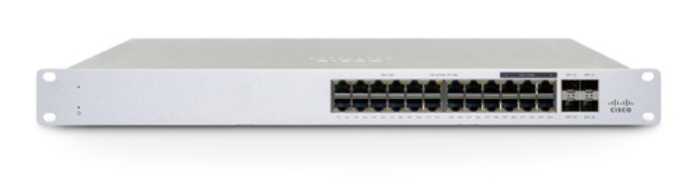

Cisco Meraki MS130-24-HW. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3bt. Rack mounting, Form factor: 1U
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| SFP module slots quantity | 4 |
|---|
| Number of management ports | 1 pc(s) |
|---|
Network
| Networking standards | IEEE 802.1Q,IEEE 802.3bt |
|---|
| 10G support | Yes |
|---|
| Port mirroring | Yes |
|---|
| Link aggregation | Yes |
|---|
| Spanning tree protocol | Yes |
|---|
| Virtual LAN features | Voice VLAN |
|---|
Data transmission
| Switching capacity | 56 Gbit/s |
|---|
Security
| DHCP features | DHCP snooping |
|---|
| IGMP snooping | Yes |
|---|
| Security algorithms | SNMP |
|---|
| Authentication type | IEEE 802.1x,RADIUS |
|---|
| Authentication | MAC-based authentication |
|---|
Multicast features
| Multicast support | Yes |
|---|
| Multicast features | Multicast traffic suppression |
|---|
Protocols
| IPv4 & IPv6 features | IPv4/IPv6 access-control list (ACL) |
|---|
Design
| Rack mounting | Yes |
|---|
| Form factor | 1U |
|---|
| Product colour | White |
|---|
| LED indicators | Yes |
|---|
Performance
| Firmware upgradeable | Yes |
|---|
| Fanless | Yes |
|---|
| Mean time between failures (MTBF) | 789842 h |
|---|
Power
| Power source | AC |
|---|
| Power supply included | Yes |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| Input current | 0.85 A |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | No |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Storage temperature (T-T) | -20 - 70 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
Weight & dimensions
| Width | 440 mm |
|---|
| Depth | 250 mm |
|---|
| Height | 34 mm |
|---|
| Weight | 3260 g |
|---|
