Produktbeskrivning
Extend reliable connectivity and PoE wherever you need it
Perfect for securely connecting outdoor access points, IoT devices, and users in ruggedized hot/cold/tight environments.
- Power more use cases with up to 240 W PoE+ and IP30 protection
- Extended operating temperature from -40 °C to 70 °C (or 40 °F to 158 °F)
- Flexible mounting and power options for different deployment needs
- Manage all your environments in one powerful Meraki cloud-managed dashboard
- MS130 mGig (-X) models are hardware-ready for Adaptive Policy with a future firmware upgrade and Advanced license
Viktiga egenskaper

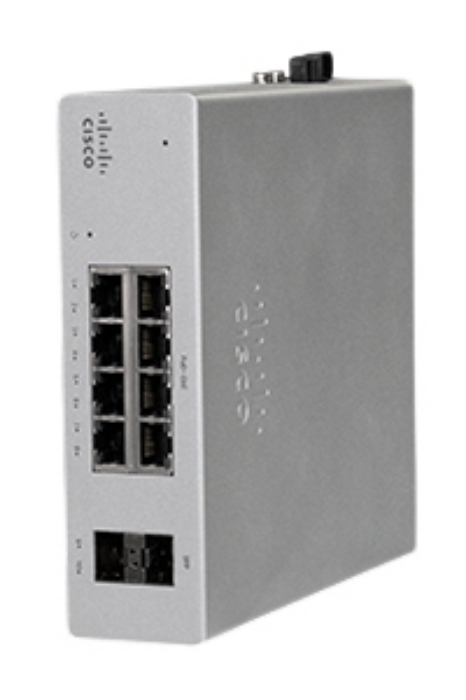

Cisco Meraki MS130. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Networking standards: IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Web-based management | Yes |
|---|
| System event log | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 8 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| Console port | RJ-45 |
|---|
Network
| Networking standards | IEEE 802.11w,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1x,IEEE 802.3ad |
|---|
| 10G support | No |
|---|
| Port mirroring | Yes |
|---|
| Broadcast storm control | Yes |
|---|
| Spanning tree protocol | Yes |
|---|
| Link aggregation | Yes |
|---|
| VLAN support | Yes |
|---|
Data transmission
| Static route | Yes |
|---|
| Jumbo frames support | Yes |
|---|
Security
| DHCP features | DHCP snooping,DHCP relay,DHCP client |
|---|
| Access Control List (ACL) | Yes |
|---|
| IGMP snooping | Yes |
|---|
| BPDU filtering/protection | Yes |
|---|
| Password protection | Yes |
|---|
| Security algorithms | SNMP |
|---|
| Authentication | MAC-based authentication |
|---|
| Authentication type | RADIUS |
|---|
Multicast features
| Multicast support | Yes |
|---|
Protocols
| Switching protocols | LLDP, CDP, RSTP, STP |
|---|
Design
| Rack mounting | Yes |
|---|
| Stackable | Yes |
|---|
| Form factor | 1U |
|---|
| Product colour | Aluminium |
|---|
| Certification | CSA-US, FCC, IC, CE, RCM, RoHS |
|---|
Performance
| Physical stacking (units) | 8 |
|---|
| Firmware upgradeable | Yes |
|---|
Power
| Redundant power supply (RPS) support | Yes |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 47/63 Hz |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
Packaging data
| Screws included | Yes |
|---|
