Produktbeskrivning

Cost-effective switches perfect for retail point-of-sale (PoS) setup and low-density branch Wi-Fi and IoT deployments.



Viktiga egenskaper

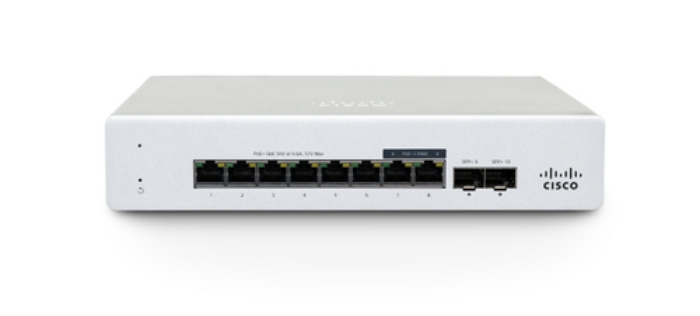

Cisco Meraki MS130. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Networking standards: IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad. Power over Ethernet (PoE). Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Console port	RJ-45

Networking standards	IEEE 802.11w,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1x,IEEE 802.3ad
10G support	No
Port mirroring	Yes
Broadcast storm control	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes

Static route	Yes
Jumbo frames support	Yes

DHCP features	DHCP snooping,DHCP relay,DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
BPDU filtering/protection	Yes
Authentication type	RADIUS
Password protection	Yes
Authentication	MAC-based authentication
Security algorithms	SNMP

Multicast support	Yes

Switching protocols	LLDP, CDP, RSTP, STP

Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Aluminium
Certification	CSA-US, FCC, IC, CE, RCM, RoHS

Physical stacking (units)	8
Firmware upgradeable	Yes

Redundant power supply (RPS) support	Yes
AC input voltage	120 - 240 V
AC input frequency	47/63 Hz

Power over Ethernet (PoE)	Yes

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Screws included	Yes
