Produktbeskrivning

Cost-effective switches perfect for retail point-of-sale (PoS) setup and low-density branch Wi-Fi and IoT deployments.



Viktiga egenskaper

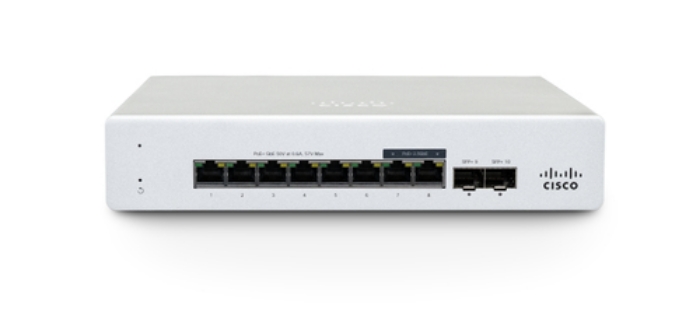

Cisco Meraki MS130-8X. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 8, Console port: RJ-45. Switching capacity: 62 Gbit/s. Networking standards: IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ad. DC input voltage: 54 V. Power over Ethernet (PoE). Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes

Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Fiber ports quantity	2
Fiber optic connector	SFP+
Console port	RJ-45

Networking standards	IEEE 802.11w,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1x,IEEE 802.3ad
10G support	No
Port mirroring	Yes
Broadcast storm control	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
VLAN support	Yes

Switching capacity	62 Gbit/s
Static route	Yes
Jumbo frames support	Yes

DHCP features	DHCP snooping,DHCP relay,DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes
Password protection	Yes
BPDU filtering/protection	Yes
Authentication	MAC-based authentication
Authentication type	RADIUS
Security algorithms	SNMP

Multicast support	Yes

Switching protocols	LLDP, CDP, RSTP, STP

Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Aluminium
Certification	CSA-US, FCC, IC, CE, RCM, RoHS

Physical stacking (units)	8
Firmware upgradeable	Yes

Power source	DC
DC input voltage	54 V
Power consumption (typical)	16 W
Power consumption (max)	136 W

Power over Ethernet (PoE)	Yes

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Width	230 mm
Depth	230 mm
Height	44 mm
Weight	960 g

Screws included	Yes
