Produktbeskrivning
Future-proof your networks with stackable access switches for Wi-Fi 7 and IoT deploymentsEasily adopt new technology while boosting scalability, security, and resilience across your campus and branches.
Cisco Meraki MS150 stackable switches provide Layer 2 access switching, ideal for branch and campus deployments. The MS150 series features a variety of options designed to meet the diverse needs of branch and campus deployments.
With 12 different models, the MS150 offers a combination of 1Gig and mGig ports supporting up to 740W of power, SFP+ uplinks, and backplane stacking. This line enables scalability to support the growing wired and wireless infrastructure deployments.
Viktiga egenskaper

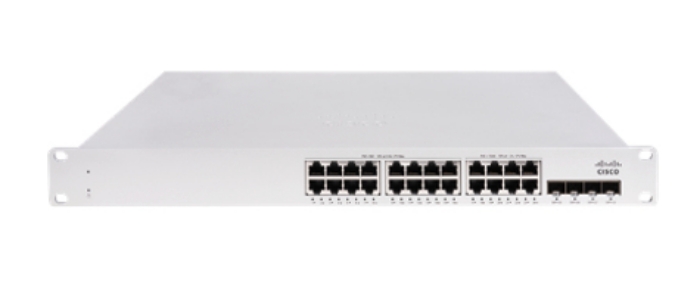

Cisco Meraki MS150-24P-4X. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
| Switch layer | L2/L3 |
|---|
| Quality of Service (QoS) support | Yes |
|---|
| Cloud-managed | Yes |
|---|
| Web-based management | Yes |
|---|
| ARP inspection | Yes |
|---|
| MIB support | Yes |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 24 |
|---|
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
|---|
| SFP module slots quantity | 4 |
|---|
| SFP+ module slots quantity | 4 |
|---|
| Number of management ports | 1 pc(s) |
|---|
Network
| Networking standards | IEEE 802.1x |
|---|
| 10G support | No |
|---|
| Port mirroring | Yes |
|---|
| Half duplex | Yes |
|---|
| Policy-based routing | Yes |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
| Link aggregation | Yes |
|---|
| VLAN support | Yes |
|---|
Data transmission
| Switching capacity | 128 Gbit/s |
|---|
| Static route | Yes |
|---|
Security
| DHCP features | DHCP snooping |
|---|
| Access Control List (ACL) | Yes |
|---|
| IGMP snooping | Yes |
|---|
Multicast features
| Multicast support | Yes |
|---|
Design
| Rack mounting | Yes |
|---|
| Stackable | Yes |
|---|
| Form factor | 1U |
|---|
| Product colour | Grey |
|---|
| LED indicators | Yes |
|---|
Power
| Power source | AC/PoE |
|---|
| Power supply included | Yes |
|---|
| AC input voltage | 100 - 240 V |
|---|
| Power consumption (max) | 422.2 W |
|---|
Power over Ethernet (PoE)
| Power over Ethernet (PoE) | Yes |
|---|
| Power over Ethernet (PoE) ports quantity | 24 |
|---|
| Power over Ethernet (PoE) power per port | 30 W |
|---|
| Total Power over Ethernet (PoE) budget | 370 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Storage temperature (T-T) | -20 - 70 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
| Heat dissipation | 1573015 BTU/h |
|---|
Weight & dimensions
| Width | 482 mm |
|---|
| Depth | 250 mm |
|---|
| Height | 44 mm |
|---|
| Weight | 3600 g |
|---|
