Produktbeskrivning

Meraki cloud-managed switches feature ease of multi-site management through a dashboard used to manage the entire Meraki portfolio. Meraki switches feature excellent tools for reducing TCO: zero-touch configuration and remote troubleshooting.

- General purpose switch for branch deployments
- Physical and virtual stacking
- Redundant power



Viktiga egenskaper

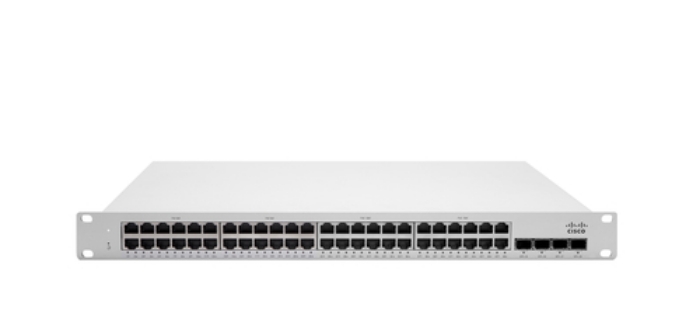

Cisco Meraki MS225-48FP L2 Stck Cld-Mngd 48x GigE 740W PoE Switch. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w. Power over Ethernet (PoE). Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes

Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP+ module slots quantity	4

Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1w
Port mirroring	Yes
Spanning tree protocol	Yes
Auto MDI/MDI-X	Yes
Broadcast storm control	Yes
VLAN support	Yes
Number of VLANs	4095

MAC address table	32000 entries
Switching capacity	176 Gbit/s
Number of queues	8

DHCP features	DHCP server,DHCP client
Access Control List (ACL)	Yes
IGMP snooping	Yes

Multicast support	Yes

Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Grey

Mean time between failures (MTBF)	320555 h

AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Power consumption (typical)	54 W
Power consumption (max)	882 W

Power over Ethernet (PoE)	Yes

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Width	484.6 mm
Depth	340 mm
Height	43.8 mm
Weight	4370 g

Harmonized System (HS) code	85176990
