Produktbeskrivning

Security and SD-WAN Appliance
Flagship SASE building block for small branches

Hardware
Stateful firewall throughput: 1 Gbps
Recommended for up to 200 users
Sleek desktop form factor

Cloud-based centralized management
Managed centrally over the web
Classifies applications, users and devices
Zero-touch, self-provisioning deployments

Networking and security
Stateful firewall
Auto VPN™ self-configuring site-to-site VPN
Active Directory integration
Identity-based policies
Client VPN (IPsec)
3G / 4G failover via USB modem

Traffic shaping and application management
Layer 7 application visibility and traffic shaping
Application prioritization

Advanced security services
Content filtering
Google SafeSearch and YouTube for Schools
Intrusion detection and prevention (IDS/IPS)
Advanced Malware Protection (AMP)
Cisco Threat Grid



Viktiga egenskaper

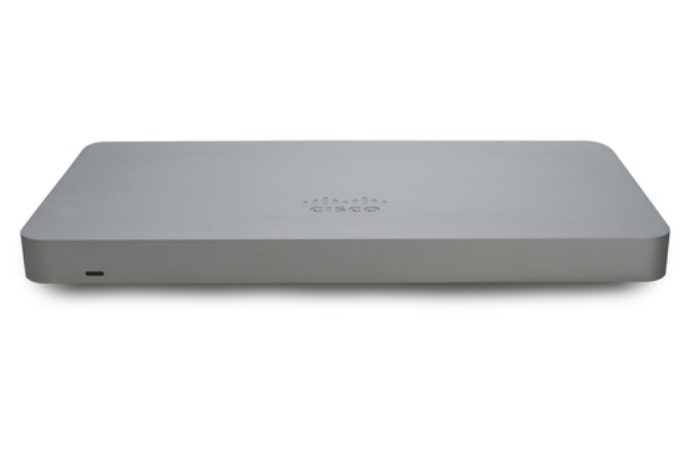

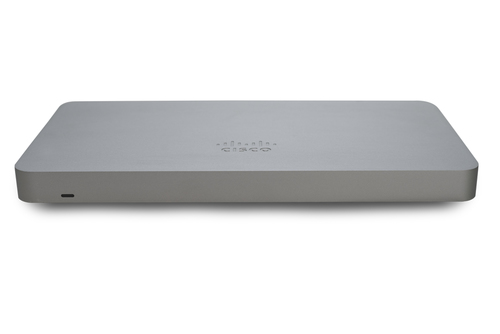

Cisco Meraki MX75. Firewall throughput: 1 Gbit/s, Maximum data transfer rate: 1 Gbit/s, VPN throughput: 0.5 Gbit/s. Number of users: 200 user(s). Connectivity technology: Wired, Ethernet LAN data rates: 1000 Mbit/s. Power consumption (max): 96 W, Power consumption (idle): 12 W, Power supply: 100 W. Width: 283 mm, Depth: 148 mm, Height: 27 mm



Teknisk specifikation

Maximum data transfer rate	1 Gbit/s
Firewall throughput	1 Gbit/s
VPN throughput	0.5 Gbit/s

VPN tunnels quantity	75
Number of users	200 user(s)

Web-based management	Yes

Connectivity technology	Wired
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	12
Ethernet LAN data rates	1000 Mbit/s
SFP module slots quantity	1

Power consumption (max)	96 W
Power consumption (idle)	12 W
Power supply	100 W

Harmonized System (HS) code	85176990

Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	5 - 95 %

Width	283 mm
Depth	148 mm
Height	27 mm
Weight	850 g

Maximum data transfer rate	1000 Mbit/s
VPN throughput	500 Mbit/s
Firewall throughput	1000 Mbit/s
