Produktbeskrivning

Streamlined installation with single cable deployment and combined 20 MP resolution, plus AI features to turbocharge insights.



Viktiga egenskaper

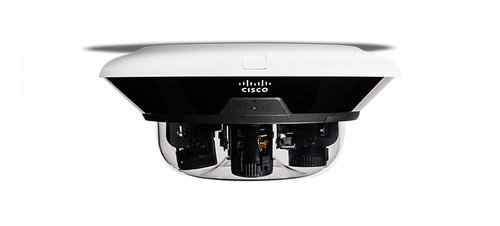

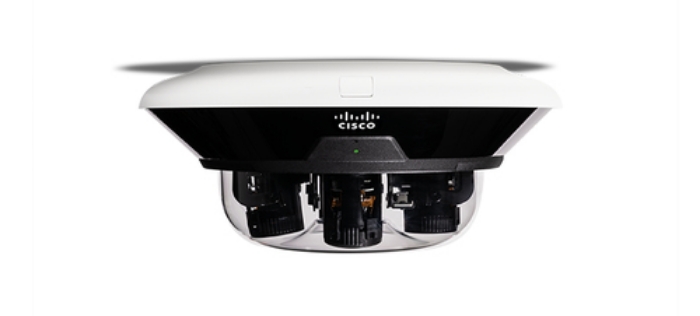

Cisco MV84X. Type: IP security camera, Placement supported: Indoor & outdoor, Connectivity technology: Wired. Mounting type: Ceiling/wall, Product colour: Black, White, Form factor: Dome. Lens viewing angle, horizontal: 118 - 45°, Lens viewing angle, vertical: 102 - 35°, Lens viewing angle, diagonal: 129 - 55°. Sensor type: CMOS, Optical sensor size: 25.4 / 2.7 mm (1 / 2.7"). Optical zoom: 2x, Focal length range: 3.42 - 6.85 mm, Detect distance (wide): 45.5 m



Teknisk specifikation

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Day/night mode	Yes

Form factor	Dome
Mounting type	Ceiling/wall
Product colour	Black,White
LED indicators	Yes

Lens viewing angle, horizontal	118 - 45 °
Lens viewing angle, vertical	102 - 35 °
Lens viewing angle, diagonal	129 - 55 °

Sensor type	CMOS
Optical sensor size	1/2.7 "
Progressive scan	Yes

Number of lenses	4
Optical zoom	2 x
Focal length range	3.42 - 6.85 mm
Maximum aperture number	1.85
Recognize distance (tele)	21.3 m
Detect distance (wide)	45.5 m
Identify distance (wide)	4.5 m
Recognize distance (wide)	9.1 m
Observe distance (wide)	18 m
Detect distance (tele)	106.7 m
Observe distance (tele)	42.3 m
Identify distance (tele)	10.7 m

Night vision	Yes
Night vision distance	30 m
LED type	IR

Maximum resolution	2560 x 1920 pixels
Total megapixels	5 MP
Video compression formats	H.264
Frame rate	24 fps
Video streaming	Yes
Image quality adjustment	HDR

Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.3at,IEEE 802.3bt

Built-in HDD	No
Built-in SSD	Yes
SSD capacity	4000 GB

Ethernet LAN (RJ-45) ports	1

Security algorithms	256-bit AES,TLS

Cloud-managed	Yes
Reset button	Yes

Power source type	PoE++
Power consumption (Power over Ethernet (PoE))	60 W

Operating temperature (T-T)	-30 - 40 °C

Height	114 mm
Diameter	267 mm
Weight	2700 g

Number of cameras	1
