Produktbeskrivning

Cisco Meraki MS210 switches provide Layer 2 access switching for branch and small campus locations. The MS210 includes 4 x 1G SFP uplinks and physically stacks with the MS225 to gain access to its 10G uplink. This family also supports an optional, rack-mountable PSU (Cisco RPS-2300) for power redundancy requirements
Cisco Meraki switches are built from the ground up to be easy to manage without compromising any of the power and flexibility traditionally found in enterprise-class switches.
The Meraki MS is managed through an elegant, intuitive cloud interface, rather than a cryptic command line. To bring up a Meraki switch, just plug it in; there’s no need for complicated configuration files or even direct physical access to the switch.
Meraki’s centralized management gives administrators deep visibility into the network and how it’s used. See which switches are near capacity across hundreds of sites. Find all configuration changes made by a certain person with instant search.



Viktiga egenskaper

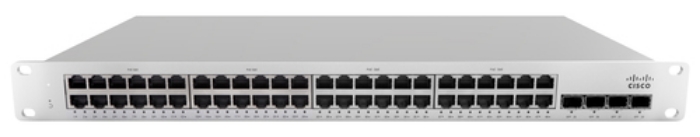

Cisco MS210-48LP-HW. Switch type: Managed, Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45. MAC address table: 32000 entries, Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.3ad. Power over Ethernet (PoE). Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Switch layer	L3
Quality of Service (QoS) support	Yes
Web-based management	Yes
System event log	Yes

Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
SFP module slots quantity	4
Console port	RJ-45

Networking standards	IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1w,IEEE 802.3ad
10G support	No
Copper ethernet cabling technology	10BASE-T,100BASE-TX,1000BASE-T
Port mirroring	Yes
IP routing	Yes
Spanning tree protocol	Yes
Auto MDI/MDI-X	Yes
Auto-negotiation	Yes
Flow control support	Yes
Broadcast storm control	Yes
Link aggregation	Yes
VLAN support	Yes
Number of VLANs	4094

MAC address table	32000 entries
Switching capacity	176 Gbit/s
Throughput	77.38 Mpps
Number of queues	8
Jumbo frames support	Yes
Jumbo frames	9578

DHCP features	DHCP snooping,DHCP relay
Access Control List (ACL)	Yes
IGMP snooping	Yes
Password protection	Yes
BPDU filtering/protection	Yes
Root protection	Yes
Security algorithms	802.1x RADIUS,SNMP

Multicast support	Yes

Supported network protocols	LLDP, CDP

Rack mounting	Yes
Stackable	Yes
Form factor	1U
Product colour	Silver
Certification	CSA-US, FCC, IC, CE, RCM, RoHS

Physical stacking (units)	8
Firmware upgradeable	Yes
Mean time between failures (MTBF)	381015 h

Redundant power supply (RPS) support	Yes
AC input voltage	100 - 240 V
AC input frequency	47/63 Hz
Power consumption (typical)	15 W
Power consumption (max)	882 W

Power over Ethernet (PoE)	Yes
Power over Ethernet plus (PoE+) ports quantity	48
Total Power over Ethernet (PoE) budget	370 W

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Width	484.6 mm
Depth	340 mm
Height	43.8 mm
Weight	4370 g

Screws included	Yes

Harmonized System (HS) code	85176990
