As the world adapts to newer ways of operation, we see tremendous growth in internet usage driven by an increasing rate of digitization along with a rush to adopt a cloud-first approach. Meeting up with this demand would require significant investment from organizations. A robust and scalable solution offering best-in-class capabilities at a lower operating cost is what they need in order to expand their infrastructure and establish intelligent connections.

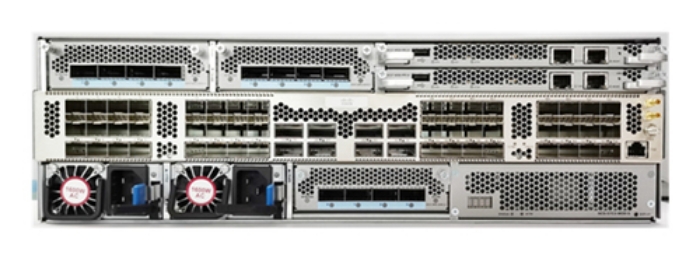

The Cisco® Network Convergence System 57C3 Series Routers (hereinafter referred to as the NCS 57C3) are designed for cost-effective delivery of next-generation networking services. These are high-capacity and low-power-consuming devices available in a 3-rack-unit compact form factor. The chassis along with the Modular Port Adapters (MPAs) provide options of using different types of interfaces ranging from 1GE to 400GE along with industry-leading MACSec encryption and Class C Timing support. These devices also provide Control Plane redundancy, thereby enabling high availability and reliability.
The Cisco NCS 57C3 Series Routers are well equipped for a range of applications such as Carrier Ethernet Aggregation, Subscriber Services, Business Ethernet, Mobile Edge, Campus, Peering and Core roles. Powered by the industry-leading Cisco IOS® XR Software, the NCS 57C3 supports a rich and comprehensive set of features like QoS, IP/MPLS, Segment Routing, SRv6, and Ethernet VPN (EVPN).
Viktiga egenskaper
Cisco NCS-57C3-MOD-S. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 56. Switching optical modules type: 100 Gigabit Ethernet. Networking standards: IEEE 802.1Q, IEEE 802.1ad, IEEE 802.3ad. Rack mounting
Teknisk specifikation
Management features
| Switch layer | L2/L3 |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity | 56 |
|---|
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
|---|
| Fast Ethernet (copper) ports quantity | 8 |
|---|
| 2.5G Ethernet (copper) ports quantity | 48 |
|---|
Network
| Networking standards | IEEE 802.1Q,IEEE 802.1ad,IEEE 802.3ad |
|---|
| 10G support | Yes |
|---|
| Zero Touch Provisioning (ZTP) | Yes |
|---|
| Ethernet LAN data rates | 100,10 Mbit/s |
|---|
| VLAN support | Yes |
|---|
Optical fiber
| Switching optical modules type | 100 Gigabit Ethernet |
|---|
Security
| Access Control List (ACL) | Yes |
|---|
Protocols
| Virtual Router Redundancy Protocol (VRRP) | Yes |
|---|
| Routing protocols | VRRP |
|---|
Design
| Rack mounting | Yes |
|---|
| Product colour | Grey |
|---|
Power
| Power source | AC |
|---|
| AC input voltage | 90 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| Power consumption (typical) | 445 W |
|---|
| Power consumption (max) | 675 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 50 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating relative humidity (H-H) | 5 - 85 % |
|---|
| Storage relative humidity (H-H) | 5 - 95 % |
|---|
| Operating altitude | 0 - 3000 m |
|---|
Weight & dimensions
| Width | 438 mm |
|---|
| Depth | 294.35 mm |
|---|
| Height | 130.5 mm |
|---|
| Weight | 11250 g |
|---|
