Produktbeskrivning

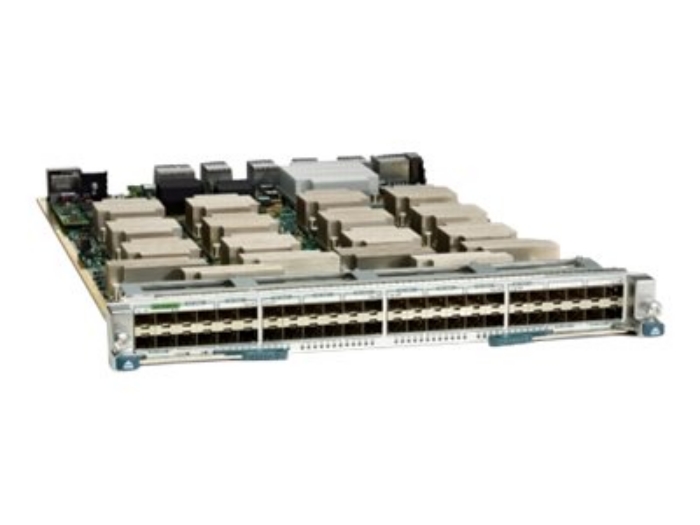

The Cisco Nexus 7000 Enhanced F2-Series 48-Port Fiber 1 and 10 Gigabit Ethernet Module offers outstanding flexibility and wire-rate performance on each port. The module enables the deployment of high-density, low-latency, scalable data center architecture.
The Cisco Nexus 7000 series switch provides the foundation for the Cisco unified fabric. It is a modular data center-class product line designed for highly scalable 10 Gigabit Ethernet networks. The fabric architecture scales beyond 15 terabits per second, designed to support future 40 and 100 Gigabit Ethernet interfaces. To meet the requirements of the most mission-critical network environments, the switches deliver continuous system operations and virtualized services.
Egenskaper
Supports for 1 and 10 Gigabit EthernetEach port can be used at 1 or 10 Gigabit Ethernet speed, allowing IT departments to migrate to 10 Gigabit Ethernet based on the unique requirements of their networks.
Comprehensive layer 2 and layer 3 capabilitiesThe comprehensive set of layer 2 and layer 3 functions makes this module excellent for data center networks.
VDCThe Cisco Nexus 7000 F2e-Series Fiber Module's VDC feature helps enable the virtualization of a single physical device in one or more logical devices. Each provisioned logical device is configured and managed as if it were a separate physical device.
Cisco FabricPath technology based on IETF TRILLCisco FabricPath uses routing principles in the data plane and control plane to bring reliability and scalability to transparent bridging while maintaining flexibility and ease of use.
FCoE supportsI/O consolidation at the access layer and core of the network reduces the physical infrastructure that needs to be acquired, managed, and maintained.
Well suited for deployment in latency-sensitive environmentsPort-to-port latency is less than 6 microseconds, enabling support for latency-sensitive applications.
Interface flexibility with Small Form-Factor Pluggable (SFP) and Enhanced SFP (SFP+) supportInterface flexibility allows fulfillment of any Gigabit Ethernet and 10 Gigabit Ethernet deployment needs, per port, with a variety of media types.
Efficient power use combined with high performancePower consumption is exceptionally low, typically about 7.5 W per port.
VOQ with centralized arbitrationThis feature enables fairness when one or more destinations is congested and provides support for lossless unified fabric.
Load sharing across all fabric modulesThrough the high-availability design, bandwidth is shared across all fabric modules simultaneously for optimal performance.
Online insertion and removal (OIR)Hot insertion and removal is supported for continuous system operation.
Identification (ID) LEDThrough the beacon feature, administrators can clearly identify the module for a service condition; ports on the I/O module can send beacons as well.
Teknisk specifikation
Allmänt
Typ av enhet | Switch - 48 portar - L3 |
Modell | Insticksmodul |
Undertyp | 10 Gigabit Ethernet |
Portar | 48 x 1 Gigabit / 10 Gigabit SFP+ |
Prestanda | Avsändningsprestanda: 720 Mpps |
Kapacitet | Virtuella gränssnitt (VLAN): 4096 IPv6-routingtabellposter: 32768 IPv6-routingtabellposter: 16384 ACL: 16384 Principer: 1024 Intilliggande poster: 16384 |
MAC Address Table Size | 16K poster |
Jumbo Frame-support | 9216 byte |
Funktioner | Stöd för IPv6, stöd för DCBX (Data Center Bridging Exchange ), prioritetsbaserad flödeskontroll, utökat överföringsval, stöd för Access Control List (ACL), Quality of Service (QoS), Jumbo Frames-support, IPv4-support, Deficit Weighted Round Robin (DWRR) |
Standarder som följs | IEEE 802.1ae, IEEE 802.1Qbb, IEEE 802.1Qaz |
Statusindikatorer | Status, länk/akvititet |
Expansion/Anslutning
Gränssnitt | 48 x 10Gb Ethernet / 1Gb Ethernet - SFP/SFP+ |
Strömtillförsel
Energiförbrukning vid drift | 350 Watt |
Diverse
Standarder som följs | NEBS nivå 3, ETSI, CISPR 22 klass A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, ICES-003, VCCI klass A ITE, EN55024, EN55022 klass A, EN50082-1, AS/NZS 60950-1, EMC, UL 60950-1 Second Edition, FCC Part 15 A, EN 300 386 |
Programvara / Systemkrav
Operativsystem erfordras | Cisco NX-OS 6.1.2 eller senare |
Dimensioner och vikt
Bredd | 38.9 cm |
Djup | 55.6 cm |
Höjd | 4.4 cm |
Vikt | 6.3 kg |
Tillverkarens garanti
Service och support | Begränsad garanti - 1 år |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 50 °C |
Luftfuktighet vid drift | 5 - 90 % (icke-kondenserande) |
Min temperatur vid förvaring | -40 °C |
Max temperatur vid förvaring | 70 °C |
Luftfuktighet vid lagring | 5 - 95 % (icke-kondenserande) |
