Produktbeskrivning

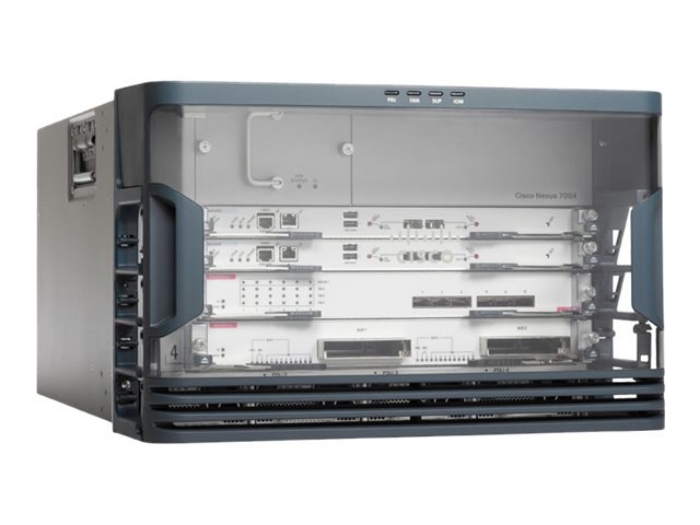

The Cisco Nexus 7000 4-Slot chassis with two I/O module slots supports up to 96 x 1 and 10 Gigabit Ethernet ports, 12 x 40 Gigabit Ethernet ports and 4 x 100 Gigabit Ethernet ports, meeting the needs of small to medium-size data centers, co-locations, access- and aggregation-layer deployments, high-speed core deployments, and smaller operation zones. The Cisco Nexus 7000 4-Slot chassis also has two dedicated supervisor slots to provide full redundancy and high availability. The 4-slot chassis does not require fabric modules. The local I/O module fabrics are connected back to back to form a two-stage crossbar that interconnects the I/O modules and the supervisor engines. The backplane capacity is determined by the installed I/O modules.



Egenskaper

● Side-to-rear airflow increases the system density in a seven-rack-unit footprint, optimizing the use of rack space
● The fan tray with built-in fan and controller redundancy helps ensure reliability of the system and support for hot swapping of fan trays
● All modules, including power supplies and the fan tray, are accessible from the front



Teknisk specifikation

Typ av enhet	Switch
Modell	Rackmonterbar 7U
Funktioner	Modulär utformning

Expansionskortplatser	4 (totalt)/ 4 (ledig) x expansionskortplats
Antal installerade enheter / moduler (max)	0 (installerad) / 4 (max)

Nätdel	Intern strömförsörjning (ej installerad) - hot-plug
Max antal som stöds	2

Standarder som följs	NEBS nivå 3, FCC klass A-certifierad, ETSI, CISPR 22 klass A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, VCCI klass A ITE, EN 61000-3-3, EN55024, EN55022 klass A, EN50082-1, EN 61000-6-1, EMC, ICES-003 klass A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, EN 300 386

Bredd	44.1 cm
Djup	62.2 cm
Höjd	30.9 cm
Vikt	20 kg

Service och support	Begränsad garanti - utbyte av delar i förväg - 1 år - svarstid: 10 dagar

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	5 - 90 % (icke-kondenserande)
Min temperatur vid förvaring	-40 °C
Max temperatur vid förvaring	70 °C
Luftfuktighet vid lagring	5 - 95 % (icke-kondenserande)
