Produktbeskrivning

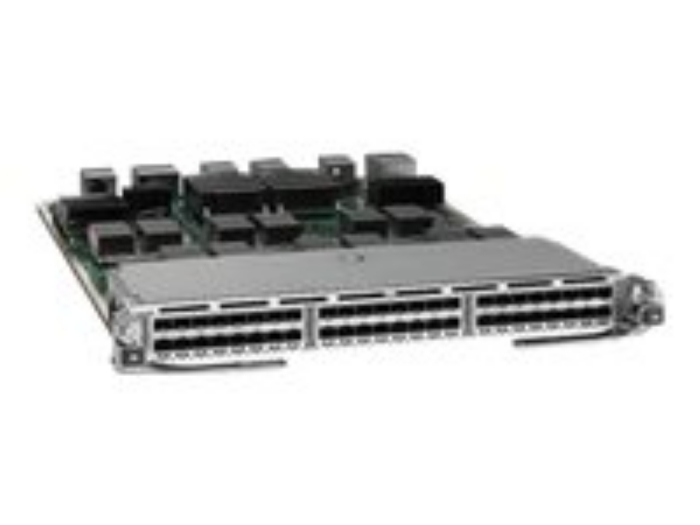

The Cisco Nexus 7700 F3-series 48-port fiber 1 and 10 gigabit Ethernet module offers wire-rate performance on each port. As a result, enterprises can use it to deploy a high-density, low-latency, scalable architecture for powering a mission-critical data center.
Egenskaper
● Extremely comprehensive set of Layer 2 and Layer 3 functions makes this module excellent for data center networks, in which density, performance, and continuous system operation are critical
● With Cisco FabricPath, organizations can build resilient, flexible, and if needed, massively scalable Layer 2 networks
● The Cisco Nexus 2000 Series is designed to simplify data center architecture and operations by dramatically reducing the number of points of management
● VXLAN can enable migration of virtual machines between servers across Layer 3 networks
● The support of advanced data center interconnect (DCI) protocols such as Cisco OTV and VPLS makes the module excellent for helping customers simplify the extension of applications across geographically dispersed data center site
● The Cisco Nexus 7700 F3-Series module supports high-performance MPLS for 10 Gigabit Ethernet data center deployments
● Support of Cisco LISP enables enterprises and service providers to simplify multi-homed routing and facilitates scalable any-to-any WAN connectivity while supporting data center virtual machine mobility
Teknisk specifikation
Allmänt
| Typ av enhet | Expansionsmodul |
|---|
| Formfaktor | Insticksmodul |
|---|
Nätverk
| Portar | Gigabit Ethernet/10 Gb Ethernet/FCoE SFP+ x 48 |
|---|
| Anslutningsteknik | Kabelansluten |
|---|
| Datalänkprotokoll | Gigabit Ethernet, 10 Gigabit Ethernet, FCoE (Fibre Channel over Ethernet) |
|---|
| Prestanda | Avsändningsprestanda: 720 Mpps |
|---|
| Kapacitet | IPv4-routes: 64000
IPv6-routes: 32000
Virtuella gränssnitt (VLAN): 4096
Intilliggande poster: 64000
ACL: 16000 |
|---|
| MAC Address Table Size | 64 000 poster |
|---|
| Protokoll för administration på distans | CLI |
|---|
| Funktioner | Stöd för ACL (Access Control List), Quality of Service (QoS), Jumbo Frames-support |
|---|
Expansion/Anslutning
| Gränssnitt | 48 x 10Gb Ethernet / FCoE - SFP+ |
|---|
Diverse
| Standarder som följs | NEBS nivå 3, ETSI, CISPR 22 klass A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 klass A, EN50082-1, EN 61000-6-1, EMC, ICES-003 klass A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, VCCI Class A, CNS 13438(95) Class A, KN22 Class A, AS/NZS CISPR 22, EN 300386 |
|---|
Dimensioner och vikt
| Bredd | 40.39 cm |
|---|
| Djup | 55.37 cm |
|---|
| Höjd | 4.4 cm |
|---|
| Vikt | 8.4 kg |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 1 år |
|---|
Miljöparametrar
| Min temperatur vid drift | 0 °C |
|---|
| Max temperatur vid drift | 40 °C |
|---|
| Luftfuktighet vid drift | 5 - 90 % (icke-kondenserande) |
|---|
Kompatibilitetsinformation
| Designat för | Cisco Nexus 7700 18 Slot Chassis, 7700 18-Slot Switch 220 Gbps/Slot Fabric Module, 7700 6 Slot Chassis, 7700 Switches 10-Slot Chassis, 7700 Switches 10-Slot Switch 220 Gbps/Slot Fabric Module, 7710, 7710 Bundle |
|---|
