Produktbeskrivning

Built on the latest Cisco Cloud Scale technology, the Cisco Nexus 9200 platform consists of industry-leading ultra-high-density fixed-configuration data center switches with line-rate Layer 2 and 3 features that support enterprise and commercial applications, service provider hosting, and cloud computing environments. These switches support a wide range of port speeds with flexible combinations of 1/10/25/40/50/100-Gbps connectivity in compact form factors. Using the widely deployed industry-leading Cisco NX-OS Software operating system, the Cisco Nexus 9200 platform is designed for programmable fabric, which offers flexibility, mobility, and scale for service providers and Infrastructure-as-a-Service (IaaS) and cloud providers. It is also designed for the programmable network, which automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets.



Viktiga egenskaper

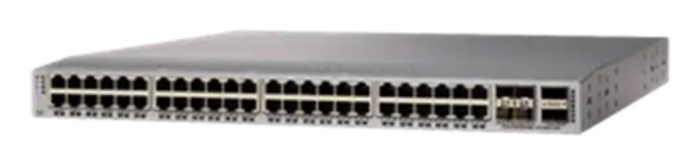

Cisco Nexus N9K-C92348GC-FX3. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1. MAC address table: 97000 entries. Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed

Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Fiber optic connector	QSFP28,SFP28
SFP28 ports quantity	4
QSFP28 ports quantity	2
USB 2.0 ports quantity	1

10G support	Yes
Spanning tree protocol	Yes
VLAN support	Yes
Number of VLANs	4096

MAC address table	97000 entries
Packet buffer memory	40 MB

Access Control List (ACL)	Yes
Access Control List (ACL) egress	2000
Access Control List (ACL) ingress	3000
IGMP snooping	Yes
IGMP entries	8000

Multicast support	Yes

Rack mounting	Yes
Form factor	1U
Product colour	Grey
Number of fans	3 fan(s)

Built-in processor	Yes
Internal memory	8000 MB
Noise level	71.6 dB
Mean time between failures (MTBF)	474571 h

Compliance certificates	RoHS

Power supply included	Yes
Number of power supply units	1
AC input voltage	100 - 240 V
Power consumption (typical)	150 W
Power consumption (max)	245 W

Power over Ethernet (PoE)	No

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 85 %
Storage relative humidity (H-H)	5 - 85 %
Operating altitude	0 - 4000 m

Width	439 mm
Depth	457 mm
Height	44 mm

Harmonized System (HS) code	85176990
