Produktbeskrivning
Based on Cisco® Cloud Scale technology, the Cisco Nexus® 9300-GX switches are the next generation of fixed Cisco Nexus 9000 Series Switches capable of supporting 400 Gigabit Ethernet (GE). With the increase in use cases for applications requiring Artificial Intelligence (AI) and Machine Learning (ML), the platform addresses the need for high-performance, power-efficient, compact switches in the networking infrastructure. These switches are designed to support 100G and 400G fabrics for mobile service provider environments, including the network edge, 5G, IoT, Professional Media Networking platform (PMN), and Network Functions Virtualization (NFV) The platform introduces a backward-compatible 400G optical interface Quad Small Form-Factor Pluggable – Double Density (QSFP-DD) to transparently migrate existing data center fabrics from 40-Gbps and 100-Gbps speeds to 400 Gbps and also offers various lower port speeds and densities, including 10, 25, 50, and 200 Gbps using breakouts. The Cisco Nexus 9300-GX provides investment protection for customers, delivering higher performance to meet scaled out spine-leaf fabrics to support growing traffic for cloud applications.
Cisco provides two modes of operation for Cisco Nexus 9000 Series Switches. Organizations can deploy Cisco Application Centric Infrastructure (Cisco ACI®) or Cisco NX-OS mode.
Cisco ACI is a holistic, intent-driven architecture with centralized automation and policy-based application profiles. It provides a robust, transport network for dynamic workloads and is built on a network fabric that combines time-tested protocols with new innovations to create a highly flexible, scalable, and resilient architecture of low-latency, high-bandwidth links. This fabric delivers a network that can support the most demanding and flexible data center environments.
Designed for the programmable network, the Cisco NX-OS operating system automates configuration and management for customers who want to take advantage of the DevOps operation model and tool sets.
Viktiga egenskaper

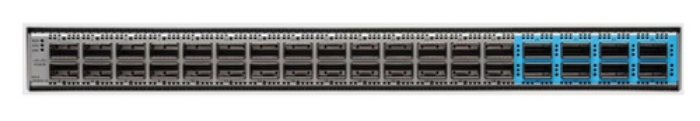

Cisco Nexus 93600CD. Switch type: Managed. Switching optical modules type: 100 Gigabit Ethernet. USB 2.0 ports quantity: 1, Console port: RJ-45. MAC address table: 256000 entries. Rack mounting
Teknisk specifikation
Management features
| Switch type | Managed |
|---|
Ports & interfaces
| Basic switching RJ-45 Ethernet ports type | No |
|---|
| Console port | RJ-45 |
|---|
| QSFP28 ports quantity | 36 |
|---|
| USB 2.0 ports quantity | 1 |
|---|
Network
| 10G support | Yes |
|---|
| Ethernet LAN data rates | 100,1000 Mbit/s |
|---|
| VLAN support | Yes |
|---|
| Number of VLANs | 3967 |
|---|
Optical fiber
| Switching optical modules type | 100 Gigabit Ethernet |
|---|
Data transmission
| MAC address table | 256000 entries |
|---|
Security
| Access Control List (ACL) | Yes |
|---|
Design
| Rack mounting | Yes |
|---|
| Product colour | Grey |
|---|
Performance
| Internal memory | 32000 MB |
|---|
| Mean time between failures (MTBF) | 295515 h |
|---|
Power
| Power source | AC |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| Power consumption (typical) | 586 W |
|---|
| Power consumption (max) | 1071 W |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95 % |
|---|
Weight & dimensions
| Width | 437 mm |
|---|
| Depth | 441.3 mm |
|---|
| Height | 648 mm |
|---|
| Weight | 12700 g |
|---|
