Produktbeskrivning

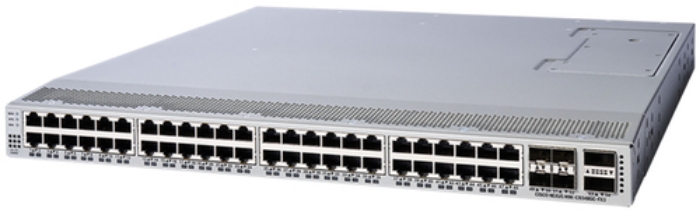

The Cisco Nexus 9348GC-FX3PH Switch (Figure 5) is a 1RU switch that supports 696 Gbps of bandwidth and over 517 Mpps. The 40 1GBASE-T downlink ports on the 9348GC-FX3PH can be configured to work as 10-Mbps, 100-Mbps, or 1-Gbps ports. The last 8 downlink ports can be configured to work as 10-Mbps or 100-Mbps only. The 4 ports of SFP28 can be configured as 1/10/25-Gbps, and the 2 ports of QSFP28 can be configured as 40- and 100-Gbps ports, or a combination of 10, 25, 40,and 100-Gbps connectivity, offering flexible migration options. The last 8 ports are only half-duplex functionality and are limited to 10Mbps and 100Mbps speeds only. Supports power over ethernet. For details refer to Table 4.



Viktiga egenskaper

Cisco Nexus C9348GC-FX3. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, USB 2.0 ports quantity: 1. Switching capacity: 696 Gbit/s. Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Switch layer	L2/L3
Cloud-managed	Yes

Basic switching RJ-45 Ethernet ports quantity	48
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
Number of management ports	2 pc(s)
Fiber ports quantity	6
Fiber optic connector	QSFP28,SFP28
USB 2.0 ports quantity	1

10G support	Yes

Switching capacity	696 Gbit/s
Throughput	517 Mpps
Packet buffer memory	40 MB

Rack mounting	Yes
Form factor	1U
Product colour	Grey
DIN rail mounting	Yes
Number of fans	3 fan(s)
Safety	UL 60950-1, CAN/CSA-C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB4943

Built-in processor	Yes
Noise level	81.6 dB
Mean time between failures (MTBF)	329090 h

Power source	AC/DC
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	226 W
Power consumption (max)	242 W

Power over Ethernet (PoE)	No

Width	439 mm
Depth	499 mm
Height	44 mm
