Produktbeskrivning

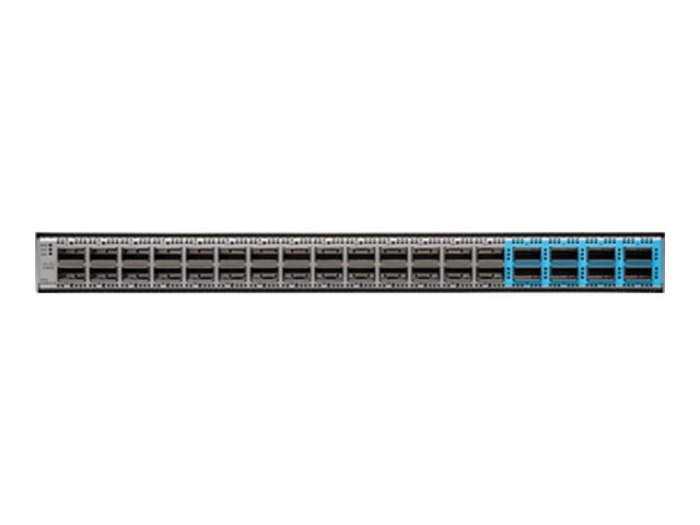

Based on Cisco Cloud Scale technology, the Cisco Nexus 9300-GX switches are the next generation of fixed Cisco Nexus 9000 Series Switches capable of supporting 400 Gigabit Ethernet (GE). With the increase in use cases for applications requiring Artificial Intelligence (AI) and Machine Learning (ML), the platform addresses the need for high-performance, power-efficient, compact switches in the networking infrastructure. These switches are designed to support 100G and 400G fabrics for mobile service provider environments, including the network edge, 5G, IoT, Professional Media Networking platform (PMN), and Network Functions Virtualization (NFV). The platform introduces a backward-compatible 400G optical interface Quad Small Form-Factor Pluggable - Double Density (QSFP-DD) to transparently migrate existing data center fabrics from 40 Gbps and 100 Gbps speeds to 400 Gbps and also offers various lower port speeds and densities, including 10, 25, 50, and 200 Gbps using breakouts. The Cisco Nexus 9300-GX provides investment protection for customers, delivering higher performance to meet scaled out spine-leaf fabrics to support growing traffic for cloud applications.



Teknisk specifikation

Typ av enhet	Switch - 36 portar - L3
Modell	Rackmonterbar 1U
Undertyp	400 Gigabit Ethernet
Portar	28 x 100 Gigabit QSFP28 / 40 Gigabit QSFP28 + 8 x 100 Gigabit / 400 Gigabit QSFP-DD
Kapacitet	LPM-poster (longest prefix match) (IPv4): 896000 Värdtabellposter (IPv4): 896000 Flersändningsvägar: 32000 IGMP-grupper: 8000 ACL-poster (ingress): 5000 ACL-poster (utgående): 2000 Virtuella gränssnitt (VLAN): 3967 VRF-instanser: 1000 ECMP-vägar: 64 Portkanaler: 512 Max antal länkar i en portkanal: 32 SPAN-sessioner: 4 HSRP-grupper: 490 MST-instanser: 64 NAT-poster: 1023
MAC Address Table Size	256 000 poster
Nätverksprotokoll	OSPF, RIP-2, BGP, EIGRP, MSDP, MPLS, RSVP
Funktioner	Stöd för STP (Spanning Tree Protocol), stöd för ACL (Access Control List), Equal-Cost Multipath (ECMP), portutblåsning, Multicast Source Discovery Protocol (MSDP), Virtual PortChannel-teknik (vPC), MACsec-support, övergångskapacitet, Virtual Extensible LAN (VXLAN), Ethernet Virtual Private Network (EVPN), Power On Auto Provisioning (POAP), 5+1 redundanta fläktar, Embedded Event Manager (EEM), utlopp på portsida (PSE), Port-side intake (PSI), 80 MB systembuffer
RAM	32 GB
Inbyggda enheter	128 GB SSD

Gränssnitt	28 x 100Gbit/40Gbit LAN QSFP28 nedlänk 8 x 100/400Gbit LAN QSFP-DD upplänk 1 x hantering RJ-45 1 x hantering SFP+ 1 x USB 1 x seriell (RS-232)

Nätdel	Intern strömförsörjning - hot-plug

MTBF (genomsnittstid mellan fel)	295,515 timmar
Standarder som följs	CISPR 22 klass A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, AS/NZS 60950-1, ICES-003 klass A, RoHS, UL 60950-1 Second Edition, GB 4943, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 55022 Class A, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, KN 61000-4

Bredd	44.13 cm
Djup	64.8 cm
Höjd	4.37 cm

Service och support	Begränsad garanti - utbyte - 1 år
