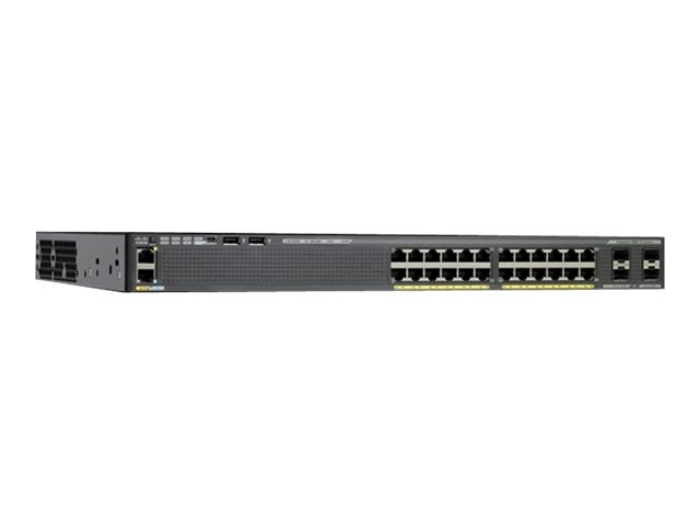

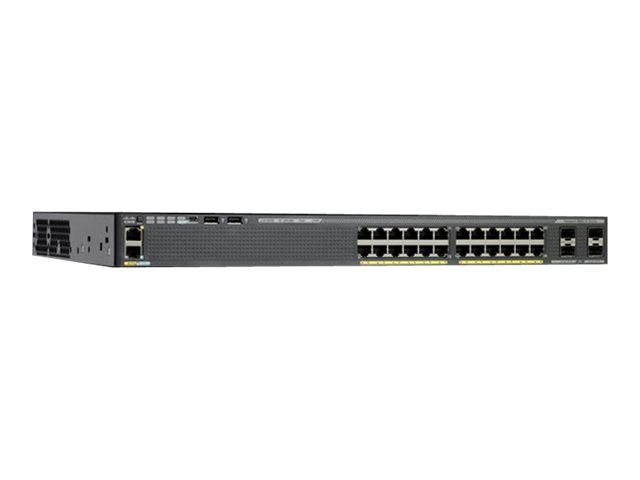

The 2960-X series are stackable Gigabit Ethernet layer 2 and layer 3 access switches. They're easy to deploy, manage, and troubleshoot. They offer automated software installation and port configuration. And they help you cut costs with energy-efficient features.
Automate software installation for zero-touch deployment. Configure ports automatically based on device type. Proactively diagnose and remediate hardware and software issues.
Consume less power with switch hibernation mode. Reduce traffic disruption due to control plane redundancy across switches.
Enable scalable and dynamic role-based access control with Cisco technology. Protect against address theft and malicious attacks.
Allmänt
| Typ av enhet | Switch - 24 portar - Administrerad - staplingsbar |
|---|
| Modell | Skrivbordsmodell, rackmonterbar 1U |
|---|
| Undertyp | Gigabit Ethernet |
|---|
| Portar | 24 x 10/100/1000 (PoE+) + 2 x SFP+ |
|---|
| PoE (Power Over Ethernet) | PoE+ |
|---|
| PoE-budget | 370 W |
|---|
| Prestanda | Växlingskapacitet: 216 Gbps
Vidarebefordransprestanda (64 bytes paketstorlek): 95.2 Mpps |
|---|
| Kapacitet | Aktiva VLAN: 1023 |
|---|
| Jumbo Frame-support | 9216 byte |
|---|
| Max antal enheter i en stapel | 8 |
|---|
| Protokoll för administration på distans | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTP, CLI |
|---|
| Verifieringsmetod | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ |
|---|
| Funktioner | Full duplex, DHCP-stöd, auto-negotiation, BOOTP-stöd, ARP-stöd, VLAN-stöd, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog-stöd, Stöd för DiffServ, Broadcast Storm Control, stöd för IPv6, Multicast Storm Control, Unicast Storm Control, stöd för STP (Spanning Tree Protocol), stöd för snabbt trädspanningsprotokoll (RSTP), stöd för MSTP (Multiple Spanning Tree Protocol), DHCP-snooping, stöd för dynamiskt trunkingprotokoll (DTP), stöd för portaggregeringsprotokoll (PAgP), stöd för TFTP (Trivial File Transfer Protocol), stöd för ACL (Access Control List), Quality of Service (QoS), MLD-snooping, Dynamic ARP Inspection (DAI), Cisco EnergyWise-teknik, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP-support, DHCP-relä, LACP (Link Aggregation Control Protocol), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), stöd för hot standby routerprotokoll (HSRP), Energy Efficient Ethernet, Management Information Base (MIB), Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), Class of Service (CoS), Cisco FlexStack Plus, stöd för DiffServ Code Point (DSCP) |
|---|
| Standarder som följs | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX |
|---|
| Processor | 1 x ARM APM86392: 600 MHz |
|---|
| RAM | 512 MB |
|---|
| Flash-minne | 128 MB |
|---|
| Statusindikatorer | Portöverföringshastighet, duplex-läge för port, system, status, RPS (Redundant Power Supply), PoE, länk/akvititet |
|---|
Diverse
| MTBF (genomsnittstid mellan fel) | 325,780 timmar |
|---|
| Standarder som följs | CISPR 22 klass A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 klass A, AS/NZS 60950-1, ICES-003 klass A, RoHS, FCC CFR47 Part 15, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, RoHS 2011/65/EU, EN 300386 |
|---|
