Produktbeskrivning

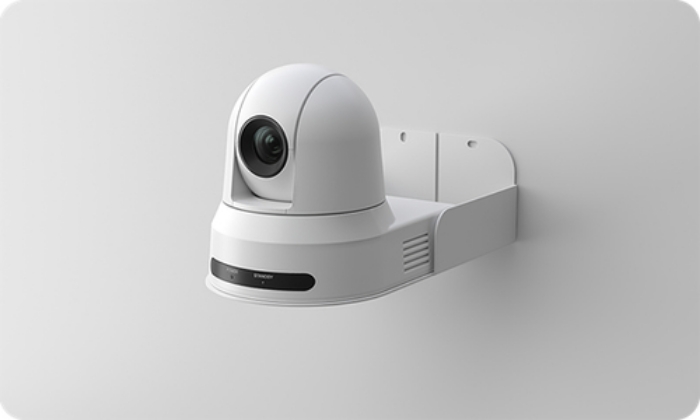

The Webex® PTZ 4K Camera is a premium pan-tilt-zoom camera that provides superior video quality, powerful zoom capabilities, intelligent AI-based features, and flexibility for optimized video collaboration experiences.

Product overview

Webex PTZ 4K Camera is a premium pan-tilt-zoom camera that provides a high-quality imaging solution for video conferencing and maximum flexibility for larger conference rooms. It seamlessly supports meeting spaces where you need special camera placement, want to view objects close up, or view a wide area with pan-tilt-zoom capability.

The camera can be easily connected to your video codec over an HDMI video interface and flexibly mounted on the wall or on the ceiling of the conference or training room to provide improved visibility and an inclusive meeting experience for remote participants. It is a powerful solution for integration into larger collaboration rooms, bringing advanced pan-tilt capability and an uncompromised video collaboration experience into conference meeting rooms, boardrooms, courtrooms, and lecture theatres.

Featuring a powerful zoom capability, Webex PTZ 4K Camera provides high-quality video for close-up views and framing of distant objects, prototypes, and the presenter or speakers who are sitting on the far end. Combined with Codec Pro or Codec Plus, it features AI-powered face and upper-body detection to enable natural interactions that remote participants can follow just like in-person attendees. Wherever you need to work and meet, the PTZ 4K Camera allows presenters to move around more freely by detecting, framing, and tracking them as they stand to present, and as they naturally move around in front of the room, as if they were on stage.



Viktiga egenskaper

Cisco Webex PTZ 4K Camera. HD type: 4K Ultra HD, Maximum video resolution: 3840 x 2160 pixels, Maximum frame rate: 60 fps. Field of view (FOV) angle: 70°, Optical zoom: 20x, Digital zoom: 12x. Product colour: Black, White



Teknisk specifikation

Camera type	Single camera
Optical zoom	20 x
Digital zoom	12 x
Combined zoom	240 x
Field of view (FOV) angle	70 °
Aperture range (F-F)	2 - 3.8
White balance	Auto,Manual
Light exposure modes	Auto,Manual
Focus adjustment	Auto/Manual
Closest focusing distance	1 m

Maximum video resolution	3840 x 2160 pixels
Maximum frame rate	60 fps
HD type	4K Ultra HD
Resolution at capture speed	1920x1080@60fps,3840x2160@30fps

Product colour	Black,White
Tilt angle range	-20 - 90 °
Pan range	-170 - 170 °
Tilt speed (max)	126 °/sec
Tilt speed (min)	1.1 °/sec
Pan speed (max)	300 °/sec
Pan speed (min)	1.1 °/sec

HDMI ports quantity	1
HDMI version	2.0
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Power source type	DC,PoE
DC input voltage	12 V
Input current	3 A

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80 %
Storage relative humidity (H-H)	20 - 95 %

Networking standards	IEEE 802.3at
Ethernet LAN data rates	10,100 Mbit/s

Harmonized System (HS) code	85258900

Width	158 mm
Depth	200 mm
Height	177 mm
Weight	1700 g
