Produktbeskrivning

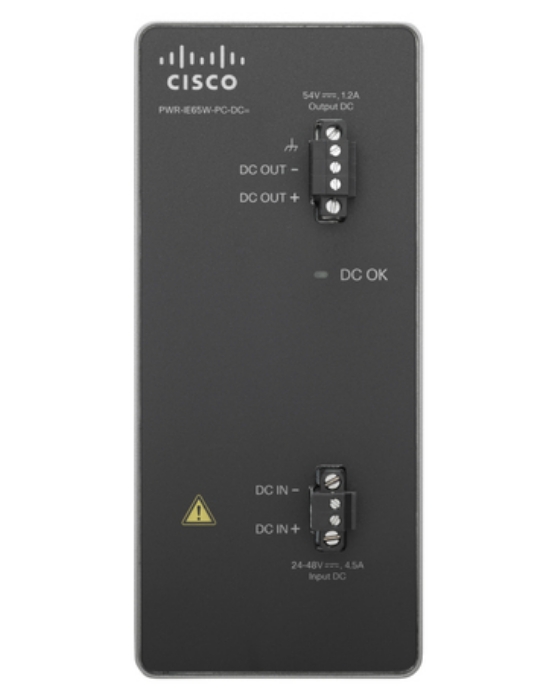

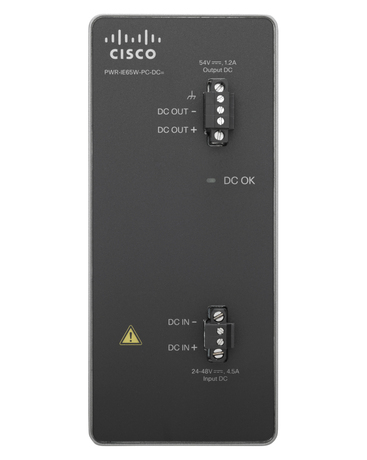

This DC-input power supply is designed to power the Cisco IEM-3000-4PC and IEM-3000-4PC-4TC Power over Ethernet (PoE) expansion modules with the following caveats.

- The 65 W DC-input power supply can support only one PoE expansion module.
- Each power supply is capable of supporting a maximum of four PoE ports or two PoE+ ports on the PoE expansion module.



Viktiga egenskaper

Cisco PWR-IE65W-PC-DC=. Purpose: Network switch, Power supply type: Indoor, Output power: 65 W. DC output voltage: +54V. Product colour: Black. Width: 66 mm, Depth: 116.8 mm, Height: 150 mm. Hold time: 20 ms



Teknisk specifikation

Purpose	Network switch
Power supply type	Indoor
Input current	4.5 A
Output power	65 W
Output current	1.2 A

DC output voltage	+54V

Product colour	Black

Operating temperature (T-T)	-40 - 60 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	10 - 95 %

Width	66 mm
Depth	116.8 mm
Height	150 mm
Weight	540 g

Maximum output power	75 W

Harmonized System (HS) code	85044095

Hold time	20 ms
