Produktbeskrivning

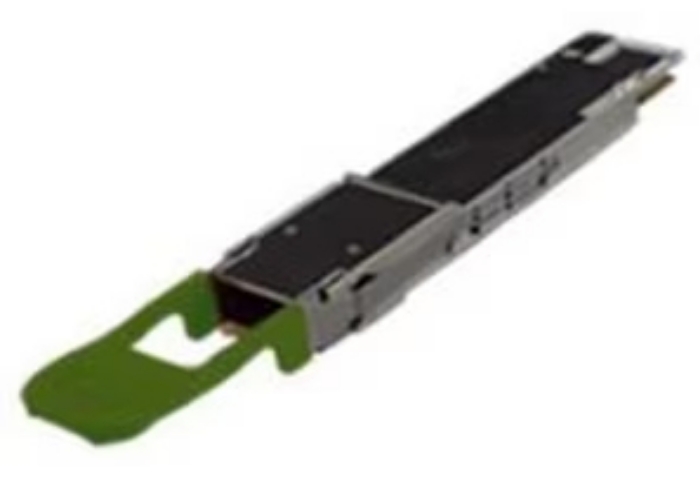

The Cisco QDD-4X100G-FR-S Module supports 100G breakout link lengths of up to 2km. The module has four pairs of SMF with an MPO-12 connector. It is compliant to the IEEE 802.3cu for 100GBASE- FR1, and 400GAUI-8/CEI-56G-VSR-PAM4 standards. The 400 Gigabit Ethernet signal is carried over four parallel lanes by one wavelength per lane. It can be used as 4x100G breakout to QSFP-100G-DR (up to 500m), QSFP-100G-FR (2km), and QSFP-100G-LR (2km). FEC is performed on the host platform.



Viktiga egenskaper

Cisco QDD-4X100G-FR-S=. SFP transceiver type: Fiber optic, Maximum data transfer rate: 100000 Mbit/s, Interface type: QSFP-DD. Product colour: Green, Silver. Quantity per pack: 1 pc(s)



Teknisk specifikation

SFP transceiver type	Fiber optic
Maximum data transfer rate	100000 Mbit/s
Interface type	QSFP-DD
Single-mode fiber (SMF) supported	Yes
Fiber optic connector	MPO-12
SFP transceiver standard	FR1
Maximum transfer distance	2000 m
Wavelength	1310 nm
Fiber ethernet cabling technology	100GBASE

Product colour	Green,Silver

Quantity per pack	1 pc(s)
