Produktbeskrivning

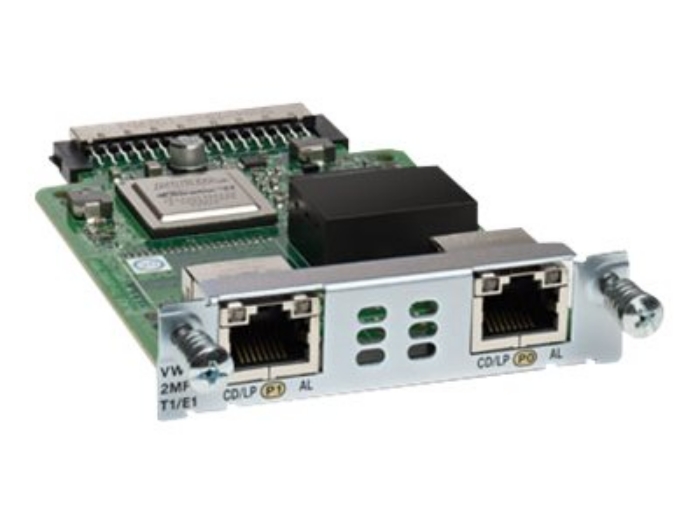

The Cisco Third-Generation 2-Port T1/E1 Multiflex Trunk Voice/WAN Interface supports data and voice applications. The Cisco MFT VWIC3 combines WAN-interface-card (WIC) and voice-interface-card (VIC) functions to provide unparalleled flexibility, versatility, and investment protection through its many uses. Customers who choose to integrate data and voice in multiple steps preserve their investment in a T1/E1 WAN interface because the Cisco MFT VWIC3 cards can be reused in packet voice applications.



Egenskaper

Reduces networking lifecycle costs
It enables graceful migration from data - only to multiplexed data and voice to packetized voice applications, reduces training, deployment, management, and sparing inventory over single-purpose interfaces, and maximizes investment protection. It simplifies network configuration and sparing through the support of both T1 and E1 on the same card, offers multifunction support for LAN-to-LAN routing, multiplexed data and voice, and packetized voice, increases configuration flexibility and reduces cost for data applications by allowing individual ports to be clocked from independent clock sources.

Maximizes system resources
It increases T1/E1 port density on the supported integrated services routers - up to two T1/E1 connections with an integrated CSU/DSU in a single EHWIC slot. Also it offers easy migration to bandwidth-efficient packet voice.



Teknisk specifikation

Typ av enhet	Expansionsmodul - 2 portar
Formfaktor	Insticksmodul
Gränssnittstyp (buss)	EHWIC

Anslutningsteknik	Kabelansluten
Dataöverföringshastighet	2.048 Mbps
Protokoll för administration på distans	SNMP, Telnet
Linjehastighet	T-1/E-1
Linjekodningsformat	AMI, B8ZS, HDB3
Statusindikatorer	Bärvågsdetektering, alarm
Funktioner	Inbyggd CSU/DSU

Gränssnitt	2 x T1/E1
Kompatibla kortplatser	1 x EHWIC

Standarder som följs	CISPR 24, EN 61000-3-2, VCCI klass A ITE, EN 61000-3-3, EN55024, EN55022 klass A, UL 60950, EN50082-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, AS/NZ 3548 Class A, CSA C22.2 No. 60950-00, ICES-003 klass A, CS-03, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, FCC CFR47 Part 15, EN 61000-4-8, IEC 60950-1, EN 60950-1

Bredd	7.8 cm
Djup	12 cm
Höjd	1.9 cm
Vikt	86 g

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	5 - 85 % (icke-kondenserande)

Designat för

Cisco 1921, 1921 4-pair G.SHDSL bundle, 1921 ADSL2+ Annex M Bundle, 1921 ADSL2+ Bundle, 1921 SEC T1 Bundle, 1921 T1 Bundle, 1941, 1941 Mobile Wireless, 1941 Secure WAAS Bundle, 1941 Security, 1941 Security Bundle, 1941 SRE Bundle, 1941 WAAS Bundle, 2901, 2901 Secure WAAS Bundle, 2901 Security Bundle, 2901 SRE Bundle, 2901 Terminal Server Bundle, 2901 Voice Bundle, 2901 Voice Security and CUBE Bundle, 2901 Voice Security Bundle, 2901 WAAS Bundle, 2911, 2911 Secure WAAS Bundle, 2911 Security Bundle, 2911 SRE Bundle, 2911 UCSE Bundle, 2911 Voice Bundle, 2911 Voice Security and CUBE Bundle, 2911 Voice Security Bundle, 2911 WAAS Bundle, 2921, 2921 Secure WAAS Bundle, 2921 Security Bundle, 2921 SRE Bundle, 2921 Voice Bundle, 2921 Voice Security and CUBE Bundle, 2921 Voice Security Bundle, 2921 WAAS Bundle, 2951, 2951 Secure WAAS Bundle, 2951 Security Bundle, 2951 SRE Bundle, 2951 UCSE Bundle, 2951 Voice Bundle, 2951 Voice Security and CUBE Bundle, 2951 Voice Security Bundle, 2951 WAAS Bundle, 3925, 3925 PSRE Bundle, 3925 Security Bundle, 3925 SRE Bundle, 3925 Voice Bundle, 3925 Voice Security and CUBE Bundle, 3925 Voice Security Bundle, 3925 WAAS Bundle, 3925E, 3925E Security Bundle, 3925E SRE Bundle, 3925E Voice Bundle, 3925E Voice Security and CUBE Bundle, 3925E Voice Security Bundle, 3945, 3945 PSRE Bundle, 3945 Security Bundle, 3945 SRE Bundle, 3945 Voice Bundle, 3945 Voice Security and CUBE Bundle, 3945 Voice Security Bundle, 3945 WAAS Express Bundle, 3945E, 3945E Security Bundle, 3945E SRE Bundle, 3945E Voice Bundle, 3945E Voice Security and CUBE Bundle, 3945E Voice Security Bundle
