Produktbeskrivning

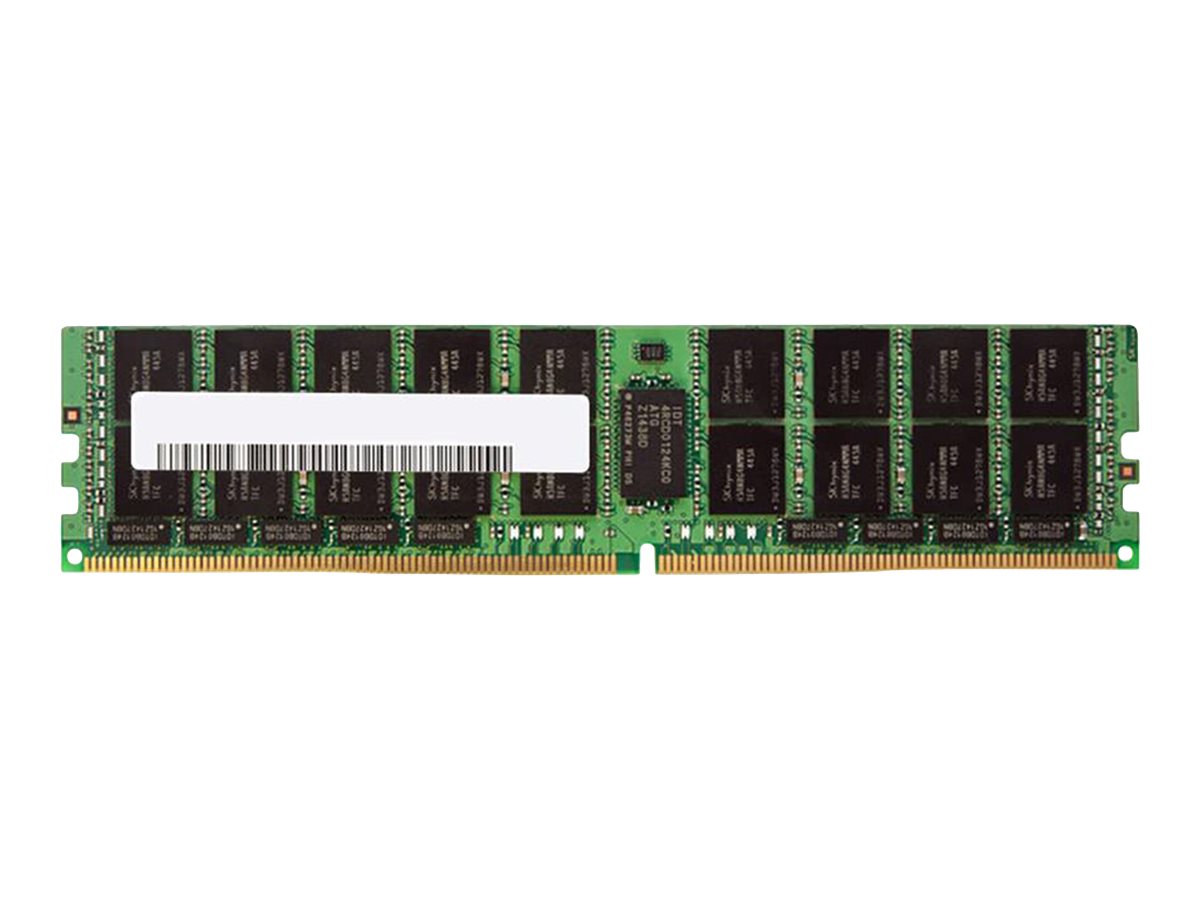

The Cisco 64-GB DDR4 Load-Reduced Dual In-Line Memory Module is designed for use with the Cisco UCS B200 M5 Blade Server to address the broadest set of workloads, from IT and web infrastructure to distributed database. This DDR4 RAM offers 64 GB of computer storage with 4 ranks per DIMM and a 2933-MHz clock speed that is supported for 2nd-generation Intel Scalable CPU production servers.



Egenskaper

COMPATIBILITY
Load-Reduced DIMM (LRDIMM) designed for use with the Cisco UCS B200 M5 Blade Server

STORAGE
64 GB of DDR4 RAM with 4 ranks per DIMM

DIMM SPEED
2933 MHz DIMM is supported for 2nd-generation Intel Scalable CPU production servers

SCALABLE
The Cisco UCS B200 M5 is scalable up to 3072 GB of RAM (using 128 GB DIMMs); do not mix TSV-RDIMMS with LRDIMMs nor RDIMMs in the same channel

PEACE OF MIND
3-year hardware warranty



Innehåll i förpackning

● UCS-ML-X64G4RT-H= Memory device, CDOC



Teknisk specifikation

Kapacitet	64 GB
Uppgraderingstyp	Systemspecifik
Artikelnummer motsvarande OEM-nummer	Cisco UCS-ML-X64G4RT-H

Typ	DRAM minnesmodul
Teknik	DDR4 SDRAM
Formfaktor	LRDIMM 288-stifts
Hastighet	2933 MHz (PC4-23400)
Data Integrity Check	ECC
Egenskaper	Fyra rader, Load-Reduced
Chips-organisering	X4
Spänning	1.2 V

Designat för

Cisco UCS B480 M5 Blade Server, C220 M5 LFF, C220 M5SN SFF, C240 M5 LFF Rack Server, C240 M5 LFF Rack Server (Tracer), C240 M5 Rack Server for Microsoft Azure Stack, C240 M5 SFF Rack Server, C240 M5L Rack Server for Microsoft Azure Stack, C480 M5 Standard Base Chassis, SmartPlay Select B200 M5 Advanced 3, SmartPlay Select B200 M5 Advanced 4 (Tracer), SmartPlay Select B200 M5 Basic 1, SmartPlay Select B200 M5 Basic 1 (Tracer), SmartPlay Select B200 M5 High Frequency 1 (Tracer), SmartPlay Select B200 M5 High Frequency 2, SmartPlay Select B200 M5 High Frequency 3, SmartPlay Select B200 M5 High Frequency 3 (Tracer), SmartPlay Select B200 M5 Standard 1 (Tracer), SmartPlay Select C220 M5 High Core 1, SmartPlay Select C220 M5 Standard 1, SmartPlay Select C220 M5S Basic 1 (Tracer), SmartPlay Select C220 M5SX (Tracer), SmartPlay Select C220 M5SX Advanced 2, SmartPlay Select C220 M5SX Advanced 2 (Tracer), SmartPlay Select C220 M5SX Advanced 3, SmartPlay Select C220 M5SX Advanced 4, SmartPlay Select C220 M5SX Advanced 5, SmartPlay Select C220 M5SX Basic 1, SmartPlay Select C220 M5SX Basic 2, SmartPlay Select C220 M5SX Basic 3, SmartPlay Select C220 M5SX Basic 4, SmartPlay Select C220 M5SX Expansion Pack 2, SmartPlay Select C220 M5SX High Core 2, SmartPlay Select C220 M5SX Standard 2 (Tracer), SmartPlay Select C220 M5SX Standard 3, SmartPlay Select C220 M5SX Standard 4, SmartPlay Select C240 M5 Standard 1, SmartPlay Select C240 M5L High Frequency 1, SmartPlay Select C240 M5L High Frequency 2, SmartPlay Select C240 M5L Standard 1, SmartPlay Select C240 M5L Standard 2, SmartPlay Select C240 M5L Standard 3, SmartPlay Select C240 M5L Standard 4, SmartPlay Select C240 M5SX Advanced 1, SmartPlay Select C240 M5SX High Frequency 2, SmartPlay Select C240 M5SX Standard 2, SmartPlay Select C240 M5SX Standard 3, SmartPlay Select C240 M5SX Standard 4, SmartPlay Select C240 M5SX Standard 5, SmartPlay Select C240 M5SX Standard 6
