Produktbeskrivning

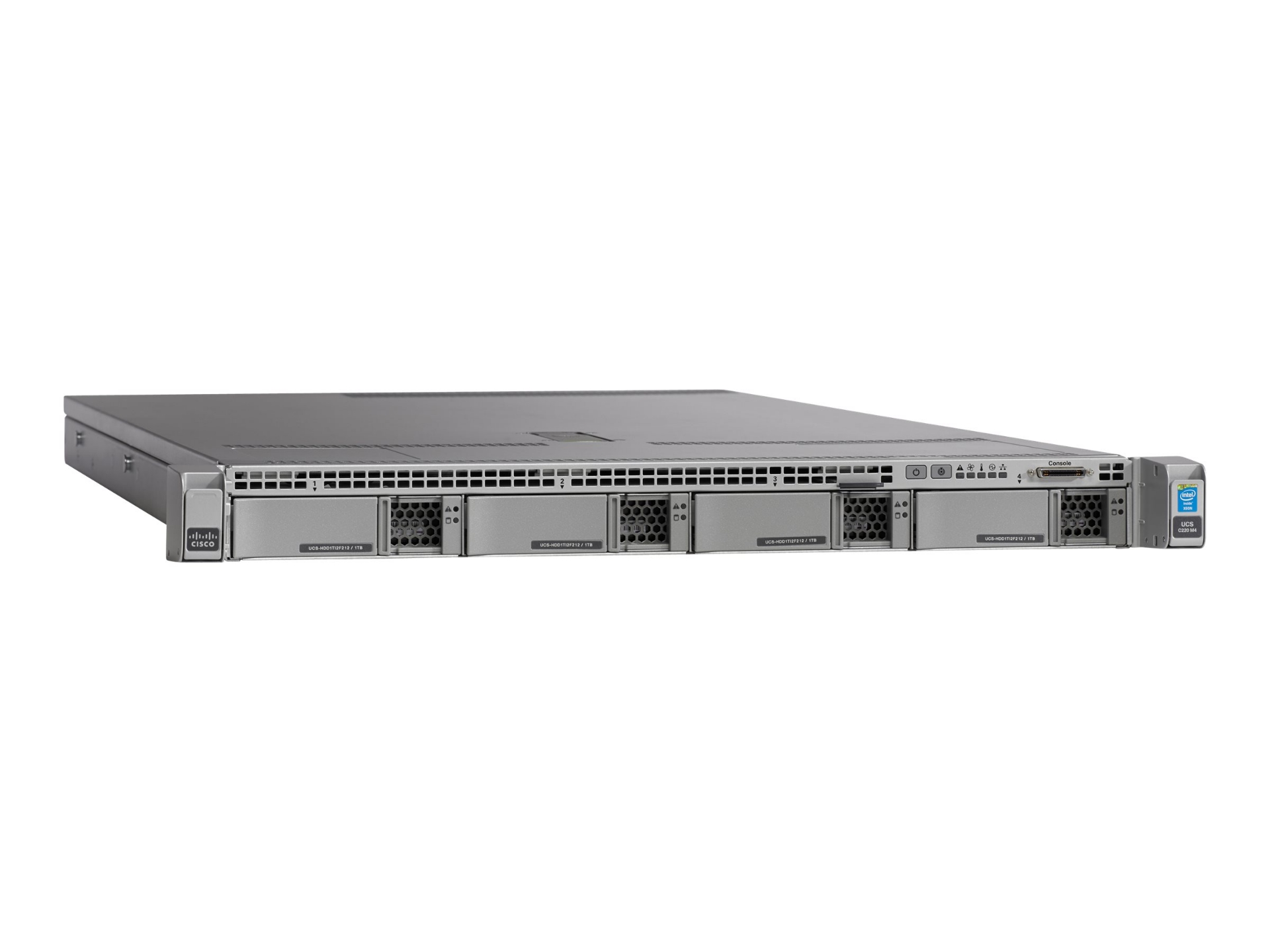

The Cisco UCS C220 M4 LFF rack server is a server from Cisco, designed for both performance and expandability over a wide range of storage-intensive infrastructure workloads from big data to collaboration. The enterprise-class UFCS C220 M4 LFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 1U form factor. In addition, the UCS C220 M4 SFF server provides 24 DIMM slots, up to 4 drives and 2 x 1 GbE LAN-on-motherboard (LOM) ports delivering outstanding levels of density and performance in a compact 1U package. The C220 M4 SFF server includes a modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 1 GbE embedded (on the motherboard) LOM ports. These features combine to provide outstanding levels of internal memory and storage expandability along with exceptional performance. The Cisco UCS C240 M4 LFF server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.



Teknisk specifikation

Typ	Server
Formfaktor för produkt	Kan monteras i rack - 1U
Skalbarhet för server	2-vägs
Antal fack för hot-swap	4

CPU	Ingen CPU
Max. CPU-antal	2
CPU-uppgraderbarhet	Uppgraderingsbar
CPU-kortplats	LGA2011-v3-uttag
Kretstyp	Intel C612

Installerad storlek	0 GB / 384 GB (max)
Teknik	DDR4 SDRAM
Formfaktor	DIMM 288-pin
Kortplatser	24 (Total) / 24 (tom)
RAM-stöd	384 GB registrerad - ECC 768 GB Load-Reduced - ECC

Typ	Ingen HDD

Typ	Ingen optisk drivenhet

Bildskärmstyp	Ingen.

Typ	Integrerad
Grafikprocessor	Matrox G200e
Videominne	8 MB
Videogränssnitt	VGA

Ethernet-portar	2 x Gigabit Ethernet
Ethernet-styrenhet	Intel I350
Datalänkprotokoll	Ethernet, Fast Ethernet, Gigabit Ethernet

Fack	4 (totalt)/ 4 (ledig) x hot-swap 3.5" LFF
Kortplatser	2 (totalt)/ 2 (ledig) x CPU 24 (totalt)/ 24 (ledig) x DIMM 288-stift 1 (totalt)/ 1 (ledig) x PCIe 3.0 x24 - trekvartslängd, fullhöjd (x16-läge) 1 (totalt)/ 1 (ledig) x PCIe 3.0 x24 - halvlängd (x16-läge) 2 (totalt)/ 2 (ledig) x SD-kort (internt)
Gränssnitt	2 x USB 3.0 (2 bakre) 1 x VGA (1 bakre) 1 x seriell - RJ-45 (1 bakre) 2 x LAN (Gigabit Ethernet) - RJ-45 (2 bakre) 1 x hantering (NIC) - RJ-45 (1 bakre) 1 x KVM (1 på framsidan)

Standarder som följs	CISPR 22 klass A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 klass A, AS/NZS 60950-1, ICES-003 klass A, UL 60950-1 Second Edition, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, KN24, KN22 Class A, GB4943.1-2001, EN 300 386, EN 300386
Typ av prissättning	DISTI

Typ av enhet	Nätaggregat - hot-plug
Redundant ström	Tillval
Installerat antal	0
Max antal som stöds	2

Medföljande OS	Inget operativsystem

Service och support	Begränsad garanti - utbyte - 3 år - svarstid: nästa arbetsdag

Bredd	43 cm
Djup	75.6 cm
Höjd	4.32 cm

Min temperatur vid drift	5 °C
Max temperatur vid drift	35 °C
Luftfuktighet vid drift	10 - 90 % (icke-kondenserade)
