Produktbeskrivning

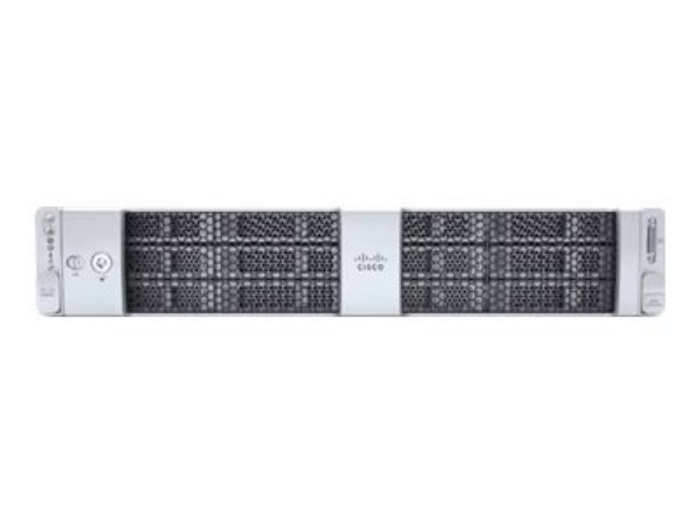

The UCS C240 M6 LFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the 3rd Gen Intel Xeon Scalable Processors (Ice Lake), 16 DIMM slots per CPU for 3200-MHz DDR4 DIMMs with per DIMM capacity points up to 256 GB. Up to 8 TB total memory (for 2 CPUs) is available if the memory slots are populated with 32 x 256 GB DDR4 DIMMs1 or 16 x 256 GB DDR4 DIMMs and 16 x 256 GB Intel Optane Persistent Memory Modules (PMEMs). The server accommodates up to 12 front facing SAS-only LFF drives, up to 4 mid-plane SAS-only LFF drives, and up to 4 rear-facing SFF drives (SAS or SATA or NVMe).
The server is equipped with two rear storage risers (2 drive slots each) and one rear PCIe riser (3 PCIe slots). The server also provides a riser slot for a 12G SAS RAID controller with SuperCap for write cache backup, or for a SAS HBA. The chassis is equipped with six fans and two power supplies. The C240 M6 server includes a dedicated modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot, in addition to 2 x 10 Intel x550 10Gbase-T embedded (on the motherboard) LOM ports.
The Cisco UCS C240 M6 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
Teknisk specifikation
Allmänt
Typ | Server |
Formfaktor för produkt | Kan monteras i rack - 2U |
Skalbarhet för server | 2-vägs |
Antal interna fack | 2 |
Antal fack på framsidan | 12 |
Antal fack för hot-swap | 12 |
Processor / Chipuppsättning
CPU | Ingen CPU |
Max. CPU-antal | 2 |
CPU-uppgraderbarhet | Uppgraderingsbar |
RAM
Installerad storlek | 0 GB |
Teknik | DDR4 SDRAM |
Formfaktor | DIMM 288-pin |
Kortplatser | 32 (Total) / 32 (tom) |
Optisk lagring
Typ | Ingen optisk drivenhet |
Bildskärm
Bildskärmstyp | Ingen. |
Grafikstyrenhet
Grafikprocessor | Matrox G200e |
Videominne | 8 MB |
Videogränssnitt | VGA |
Nätverk
Datalänkprotokoll | Gigabit Ethernet |
Kontroll för fjärradministration | Intel Baseboard Management Controller (BMC), Cisco Integrated Management Controller |
Expansion/Anslutning
Fack | 12 (totalt)/ 12 (ledig) x hot-swap 3.5" LFF |
Kortplatser | 3 (totalt)/ 3 (ledig) x expansionskortplats (endast riserkort) 1 (totalt)/ 1 (ledig) x mLOM 2 (totalt)/ 2 (ledig) x M.2 Card |
Gränssnitt | 1 x hantering (Gigabit Ethernet) - RJ-45 (1 bakre) 2 x LAN (10Gigabit Ethernet) - RJ-45 (1 bakre) 1 x seriell - RJ-45 (1 bakre) 1 x VGA - DB-15 (1 bakre) 2 x USB 3.0 (2 bakre) 1 x KVM (1 på framsidan) |
Diverse
Standarder som följs | ACPI 4.0 |
Strömtillförsel
Typ av enhet | Nätaggregat - hot-plug |
Redundant ström | Tillval |
Schema för redundant ström | 1+1 |
Max antal som stöds | 2 |
Tillverkarens garanti
Service och support | Begränsad garanti - utbyte - 3 år - svarstid: nästa arbetsdag |
Mått och vikt
Bredd | 42.9 cm |
Djup | 76.2 cm |
Höjd | 8.7 cm |
Miljöparametrar
Min temperatur vid drift | 10 °C |
Max temperatur vid drift | 35 °C |
Luftfuktighet vid drift | 8 - 90 % (icke-kondenserande) |
