Produktbeskrivning

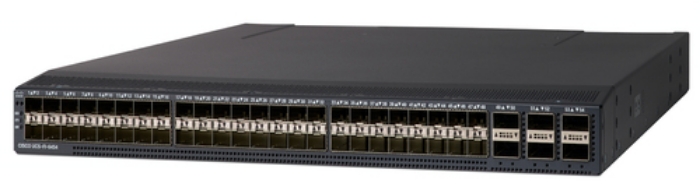

The Cisco UCS 6454 54-Port Fabric Interconnect (Figure 3) is a One-Rack-Unit (1RU) 10/25/40/100 Gigabit Ethernet, FCoE, and Fibre Channel switch offering up to 3.82 Tbps throughput and up to 54 ports. The switch has 28 10/25-Gbps Ethernet ports, 4 1/10/25- Gbps Ethernet ports, 6 40/100-Gbps Ethernet uplink ports, and 16 unified ports that can support 10/25-Gbps Ethernet ports or 8/16/32-Gbps Fibre Channel ports. All Ethernet ports are capable of supporting FCoE.



Viktiga egenskaper

Cisco UCS 6454. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports quantity: 4. MAC address table: 32000 entries. Networking standards: IEEE 802.1Q, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1s,.... Power connector: AC-in jack. Rack mounting, Form factor: 1U



Teknisk specifikation

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes

Basic switching RJ-45 Ethernet ports quantity	4
Installed SFP modules quantity	0
Installed SFP+ modules quantity	0
USB Type-A ports quantity	1
SFP28 ports quantity	48
QSFP28 ports quantity	6
Power connector	AC-in jack

Networking standards	IEEE 802.1Q,IEEE 802.3ad,IEEE 802.3x,IEEE 802.1p,IEEE 802.1Qbb,IEEE 802.1Qaz,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ae,IEEE 802.3by,IEEE 802.3bm
10G support	Yes
Link aggregation	Yes
Spanning tree protocol	Yes
Flow control support	Yes
VLAN support	Yes
Virtual LAN features	Tagged VLAN

MAC address table	32000 entries
Throughput	3820 Gbit/s
Jumbo frames support	Yes
Jumbo frames	9216

IGMP snooping	Yes
Queue scheduling algorithms	Weighted Round Robin (WRR)

Rack mounting	Yes
Form factor	1U
Product colour	Black
Number of fans	4 fan(s)
Airflow direction	Front-to-back airflow

Built-in processor	Yes

Compliance certificates	RoHS

Power source	AC
Power supply included	No
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	260 W
Power consumption (max)	930 W

Power over Ethernet (PoE)	No

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 4000 m

Width	439 mm
Depth	571 mm
Height	44 mm
